Motors

41 models in three families, with 70 tested versions. Filter by type and voltage, then sort by speed or torque to find the closest match. Every model can be rewound or fitted with a different gearbox for your product.

Motor finder
Gear motors
Brushless DC motors
Brushed DC motors

Motor finder

Values from our catalogue at rated voltage. Click a column heading to sort.

Showing 70 versions

	Type	V	RangeV	rpm	rpm	mN·m	W	mN·m

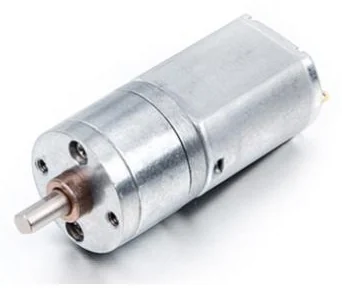

HS20ZJSX-180-78K	Gear	12	9.0–15.0	83	67	82.3	0.59	430
HS20ZJSX-180-195K	Gear	2.4	2.0–4.5	41	35	210	0.76	1360

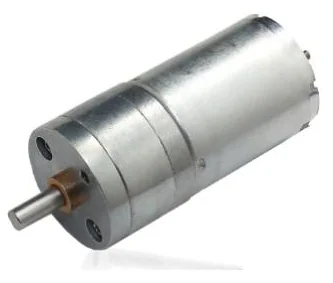

HS25ZJSX-370-83K	Gear	12	9.0–15.0	54	47	167	0.81	1390
HS25ZJSX-370-215K	Gear	3	2.0–4.5	14	12	329	0.39	1890
HS37ZJSX-510S-90K	Gear	12	9.0–15.0	92	76	744	5.83	4290
HS37ZJSX-510S-270K	Gear	24	18.0–30.0	20	18	1268^‡	2.44	5500
HS3246WJSX-370-136K	Gear	12	9.0–15.0	31	27	267^‡	0.76	2200
HS3246WJSX-370-828K	Gear	12	9.0–15.0	3	2	910	0.24	5400

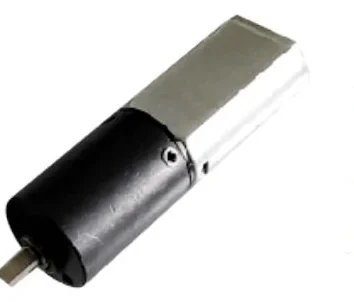

HS20JSX-180-370K	Gear	12	9.0–15.0	18	14	530	0.77	2700
HS20JSX-180-29K	Gear	4.5	3.0–7.5	128	106	30	0.33	170

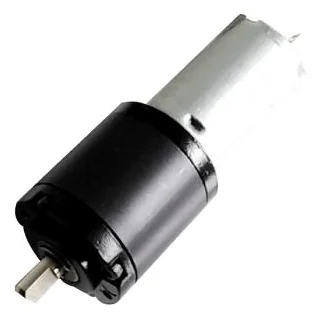

HS22JSX-130-304K	Gear	9	4.5–12.0	24	20	350	0.73	1780
HS22JSX-130-43K	Gear	6	4.5–12.0	112	89	38	0.35	178

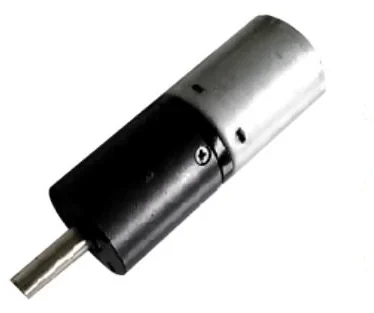

HS24JSX-370-125K	Gear	12	9.0–15.0	46	39	248	1.02	1710
HS24JSX-370-25K	Gear	12	9.0–15.0	148	122	45	0.58	258

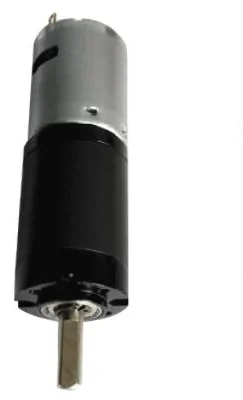

HS28JSX-365-80K	Gear	24	15.0–30.0	125	98	560	5.73	2600
HS28JSX-360-125K	Gear	12	9.0–15.0	36	26	258	0.7	968

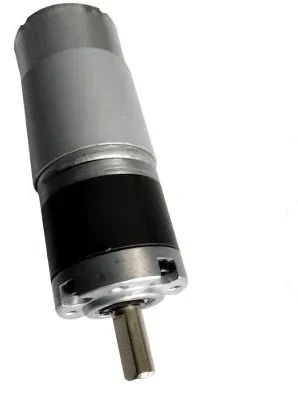

HS36JSX-555-14K	Gear	12	9.0–15.0	235	205	398	8.5	3000
HS36JSX-555-50K	Gear	24	15.0–30.0	60	49	598	3.07	3350
HS36JSX-545-27K	Gear	12	9.0–15.0	155	124	339	4.36	1680
HS42JSX-775-5.3K	Gear	24	15.0–30.0	375	308	318	10.16	1785
HS42JSX-775-13K	Gear	24	15.0–30.0	230	183	396	7.56	1900

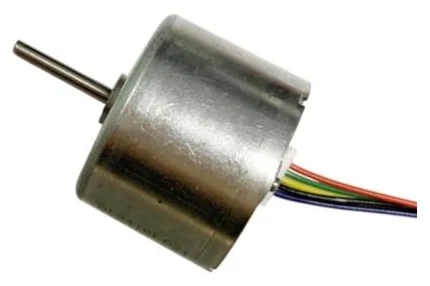

HS2418BL-1260	Brushless	12	10.0–15.0	5990	4800	2.6	1.38	13.8^‡

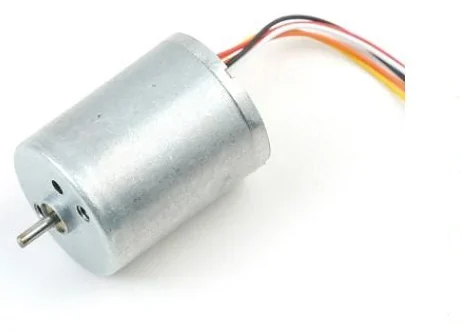

HS2430-1250	Brushless	12	10.0–15.0	5380	4422	6.68	3.22	37.5
HS2838BL-3125	Brushless	12	6.0–15.0	12000	9800	11.4	11.7^†	50

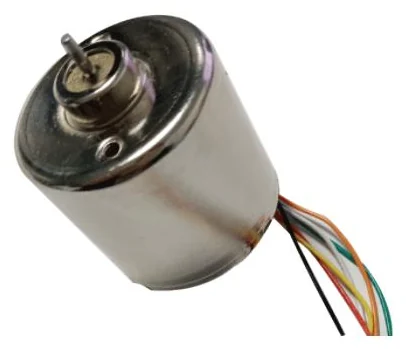

HS3630BL-23150	Brushless	24	15–24.0	6800	5300	13.1	7.27^†	65
HS3630BL-24130	Brushless	12	12–18.0	3000	2300	9.5	2.29^†	35.5
HS70BL-2-6913	Brushless	24	15–24.0	12000	11056	54	62.5^†	–
HS57BL-5540	Brushless	24	15–24.0	4600	3840	86.7	34.9^†	–

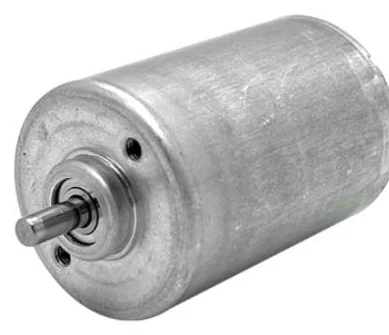

HS42BL-2455	Brushless	24	15–24.0	5500	4000	52.8	22.1^†	208
HS42BL-1230	Brushless	12	12–18.0	3000	2050	27.6	5.93^†	105

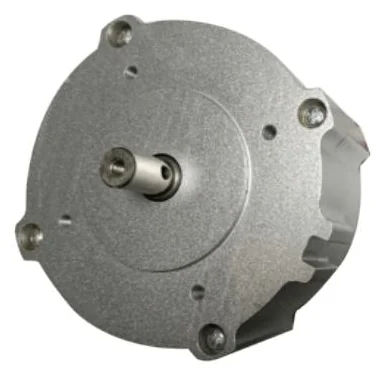

HS90BL-2455	Brushless	48	36–48	On request	On request	On request	On request	On request

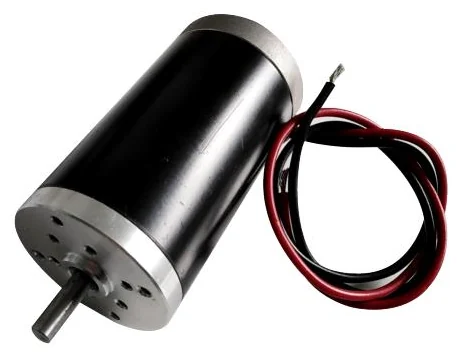

H42ZYT-74	Brushed	12	6.0–20.0	4350	3602	30	12	185
H42ZYT-90	Brushed	10.5	9.0–15.0	4720	3969	45	18.95	290

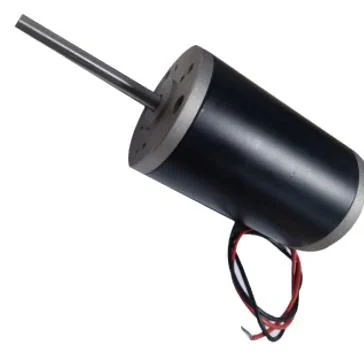

H63ZYT105-2700	Brushed	24	18.0–24.0	2700	2455	75	19.3^†	595
H63ZYT105-3600	Brushed	12	6.0–12.0	3600	3000	109	34.2^†	659

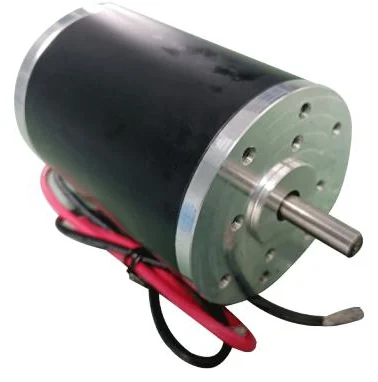

H73ZYT-3660	Brushed	36	18.0–36.0	5700	4600	408.7	197^†	2220
H80ZYT-2385-2700	Brushed	170	150–180	2700	2080	457.7	99.7^†	2100

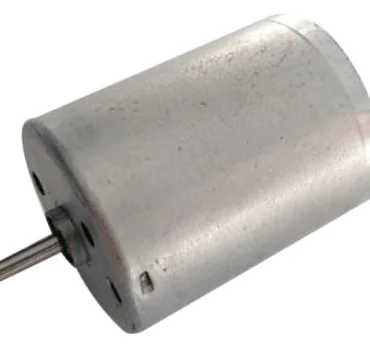

HRF-370CH-22170	Brushed	3	1.5–5.0	3050	2595	1.5	0.41	10.1
HRF-370CH-11670	Brushed	12	6.0–15.0	3100	2550	1.47	0.41	8.9
HRF-370CH-13400	Brushed	12	6.0–15.0	4500	3818	2.2	0.89	14.8

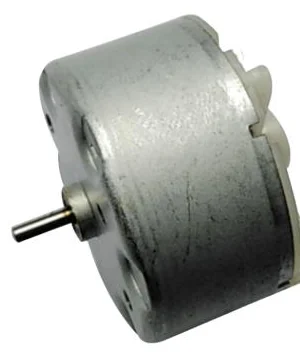

HRF-500TB-12560	Brushed	6	4.5–7.5	2700	2092	1.38	0.3	6.2
HRF-500TB-14415	Brushed	6	4.5–7.5	3700	3091	1.7	0.55	10.4

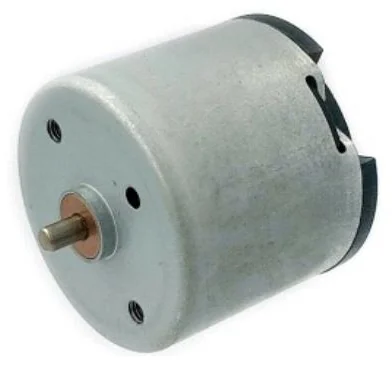

HRK-510SA-17285	Brushed	12	6.0–15.0	5180	4142	7.7	3.3	38.8
HRK-510SA-22200	Brushed	12	6.0–15.0	7550	6291	10	6.78	62.8

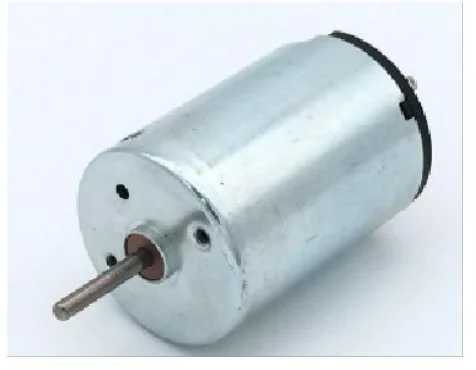

HRK-511SA-26150	Brushed	12	6.0–15.0	5165	4368	11.23	5.02	72.3
HRK-511SA-18300	Brushed	24	12.0–30.0	4087	3428	11.5	3.91	71.4

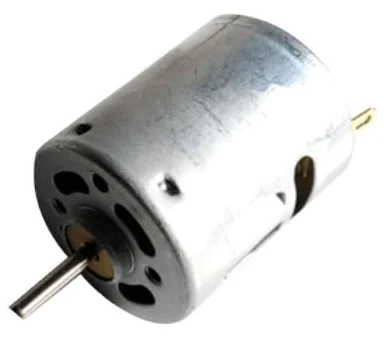

HRS-365SH-12190	Brushed	24	12.0–30.0	10500	7779	5	4.3	25.7
HRS-365SH-2170	Brushed	18	6.0–20.0	19000	16013	7.7	12.88	49.8

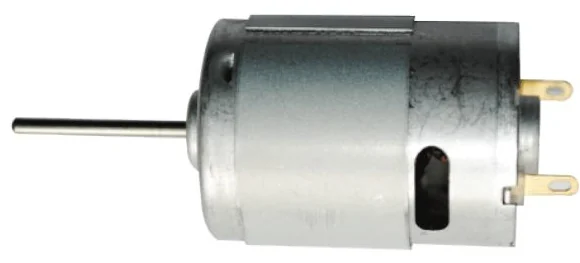

HRS-385SH-16120	Brushed	24	12.0–30.0	11170	9110	9.5	8.98	51.9
HRS-385SH-2073	Brushed	20	9.0–24.0	17200	14423	9.49	14.3	58.8

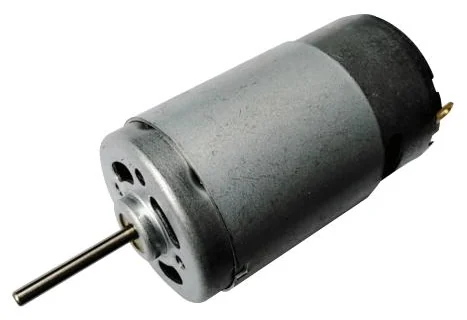

HRS-395SH-1790	Brushed	24	12.0–30.0	10480	8792	10	9.84	67.2
HRS-395SH-15140	Brushed	24	12.0–30.0	7450	6410	9.5	5.99	64.8

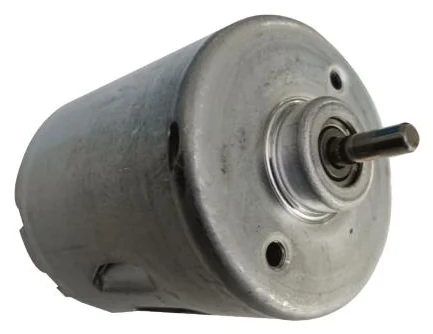

HRS-535SH-2495	Brushed	24	12.0–30.0	10400	7979	27.3	22.8	76
HRS-535SH-2495 (12 V)	Brushed	12	6.0–15.0	5000	3750	16.8	6.5	55.7

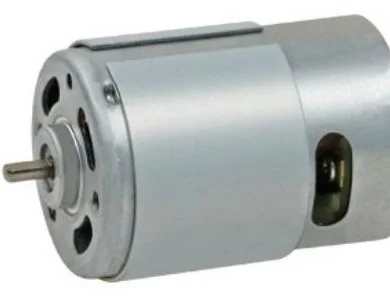

HRS-545SH-2490	Brushed	24	12.0–30.0	7000	6026	25.5	16.1	165
HRS-545SH-3045	Brushed	12	6.0–15.0	8600	7130	17.2	11.2	95.3
HRS-555SH-3824	Brushed	12	6.0–16.0	5600	5060	21	11.55	197
HRS-555SH-23110	Brushed	24	12.0–30.0	4600	4059	22.4	9.55	178.8
HRS-775SH-7114	Brushed	18	6.0–20.0	19500	17086	152.8	268.72	1230
HRS-775SH-8015	Brushed	16.8	6.0–20.0	18000	15627	136.8	221.02	1037

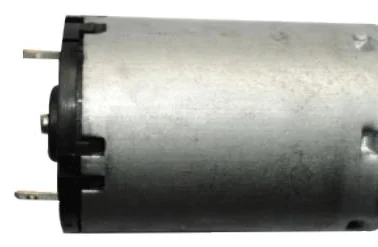

HRS-457SH-12185	Brushed	24	12.0–30.0	3200	2900	12	3.2	58
HRS-457SH-1580	Brushed	13.5	6.0–15.0	4150	2900	8.2	2.49^†	40.8

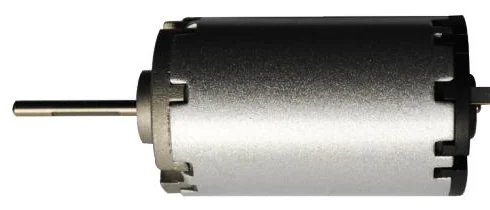

HRS-3151SH-14130	Brushed	24	12.0–30.0	3900	2700	13.02	3.5	55
HRS-3151SH-2170	Brushed	12	6.0–15.0	3900	2800	10	2.5	56

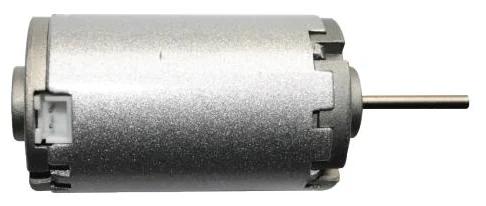

HRS-3153SH-14130	Brushed	24	12.0–30.0	3900	2700	13.02	3.2	55
HRS-3153SH-2545	Brushed	12	6.0–15.0	4300	3580	18.3	6.78	128
HRS-3164SH-2550	Brushed	24	12.0–30.0	4300	3700	9.8	3.82	86.5
HRS-3164SH-3325	Brushed	12	6.0–15.0	3900	3546	8.5	3.2	81

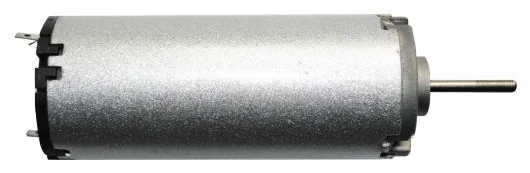

HRS-3176SH-2456	Brushed	24	12.0–30.0	5600	5000	24.2	12.73	230
HRS-3176SH-4220	Brushed	12	6.0–15.0	8500	7740	25	20.14	280

^† Calculated from torque and speed. The catalogue lists input power for these versions.
^‡ Corrected from the catalogue's second torque column, which agrees with the output power or the speed–torque line.

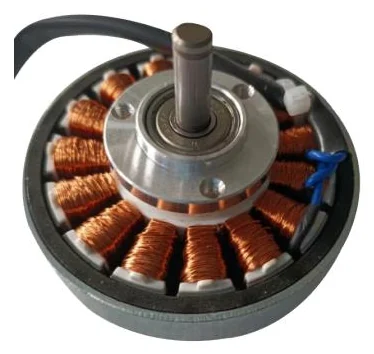

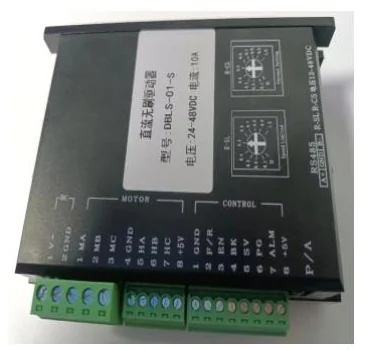

Gear-motor speeds are at the output shaft. Not in this table: the brushless driver and the HS90 and HS57 outer-rotor generators.
