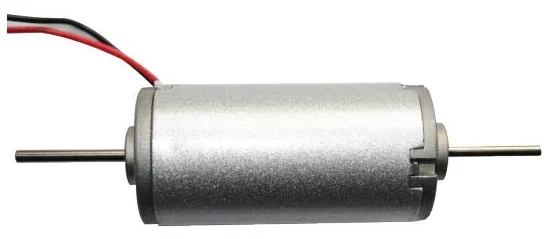

HRS-487SH
Carbon-brush DC motor, 31 mm body, double shaft
- Rated voltage
- 12–24 V
- No-load speed
- 3900–4300 rpm
- Torque at max. efficiency
- 8.5–9.8 mN·m
- Output power
- 3.2–3.82 W
Typical applications
- Printers
- Automotive products
- Office automation equipment
Performance
| Version | HRS-3164SH-2550 | HRS-3164SH-3325 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 6.0–15.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 4300 | 3900 |
| Current (A) | 0.1 | 0.12 |
| At maximum efficiency | ||
| Speed (rpm) | 3700 | 3546 |
| Current (A) | 0.5 | 0.35 |
| Torque (mN·m) | 9.8 | 8.5 |
| Output power (W) | 3.82 | 3.2 |
| Stall | ||
| Torque (mN·m) | 86.5 | 81 |
| Current (A) | 3 | 2.9 |

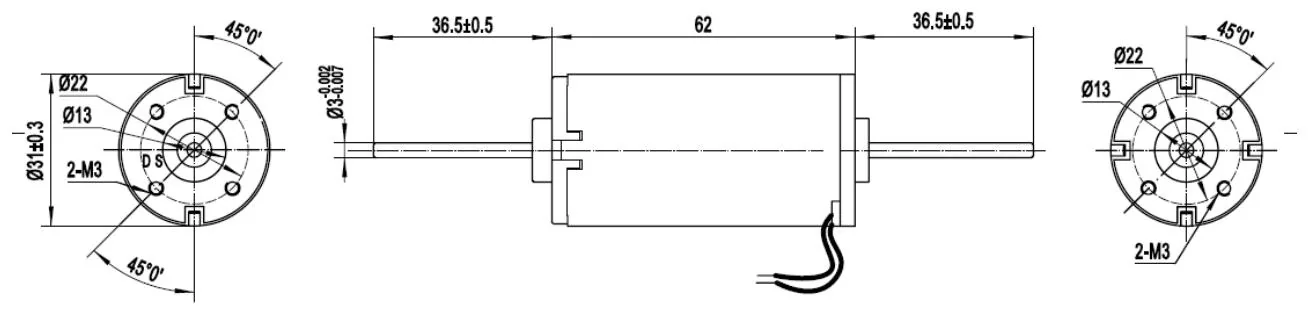

Dimensions
Performance curves

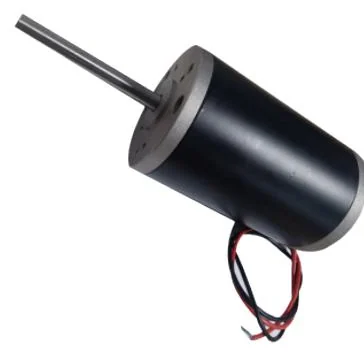

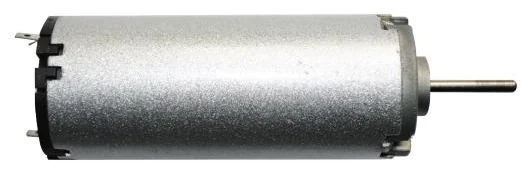

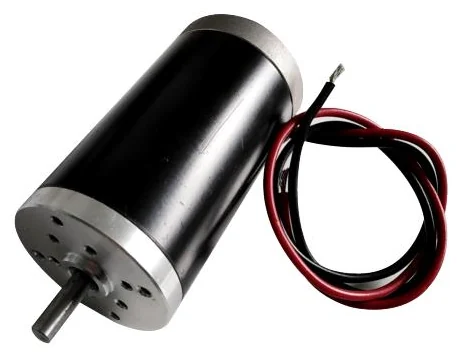

Other brushed DC motors
