HRS-457SH
Carbon-brush DC motor, 31 mm body
- Rated voltage
- 13.5–24 V
- No-load speed
- 3200–4150 rpm
- Torque at max. efficiency
- 8.2–12 mN·m
- Output power
- 2.49–3.2 W
Typical applications
- Printers
- Automotive products
- Office automation equipment
Performance
| Version | HRS-457SH-12185 | HRS-457SH-1580 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 6.0–15.0 |
| Rated voltage (V) | 24 | 13.5 |
| No load | ||
| Speed (rpm) | 3200 | 4150 |
| Current (A) | 0.1 | 0.09 |
| At maximum efficiency | ||
| Speed (rpm) | 2900 | 2900 |
| Current (A) | 0.35 | 0.09 |
| Torque (mN·m) | 12 | 8.2 |
| Output power (W) | 3.2 | 2.49† |
| Stall | ||
| Torque (mN·m) | 58 | 40.8 |
| Current (A) | 1.11 | 1.43 |
- † Calculated from torque and speed.

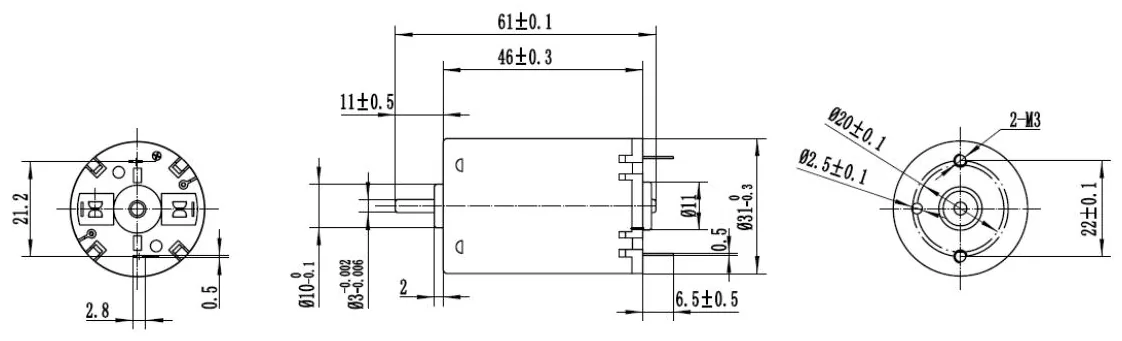

Dimensions
Performance curves
