HS2418BL
Brushless DC motor, 24.4 mm body
- Rated voltage
- 12 V
- No-load speed
- 5990 rpm
- Torque at max. efficiency
- 2.6 mN·m
- Output power
- 1.38 W
Typical applications
- Kitchen appliances
- Blood pressure monitors
- Car air-conditioning fan regulators
Performance
| Version | HS2418BL-1260 |
|---|---|
| Voltage | |
| Operating range (V) | 10.0–15.0 |
| Rated voltage (V) | 12 |
| No load | |
| Speed (rpm) | 5990 |
| Current (A) | 0.045 |
| At maximum efficiency | |
| Speed (rpm) | 4800 |
| Current (A) | 0.195 |
| Torque (mN·m) | 2.6 |
| Output power (W) | 1.38 |
| Stall | |
| Torque (mN·m) | 13.8‡ |
| Current (A) | 0.9 |
- ‡ Corrected from the catalogue's second torque column, which agrees with the output power or the speed–torque line.

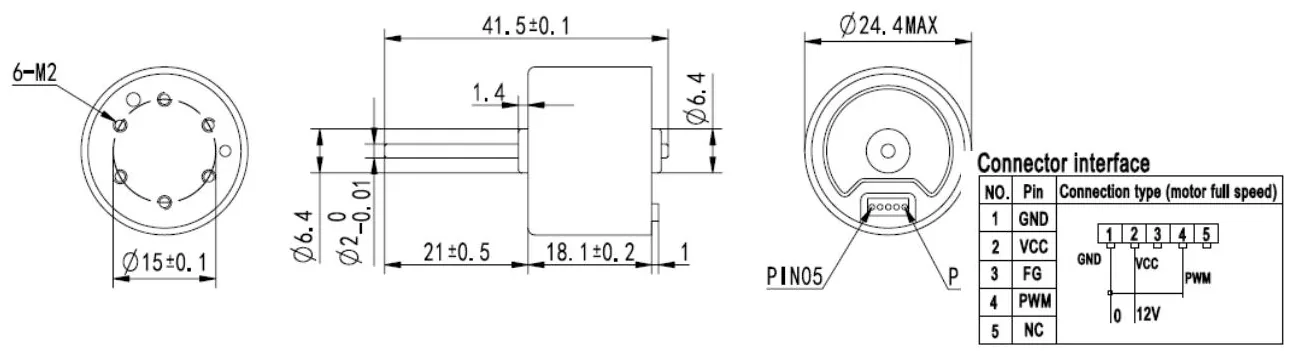

Dimensions

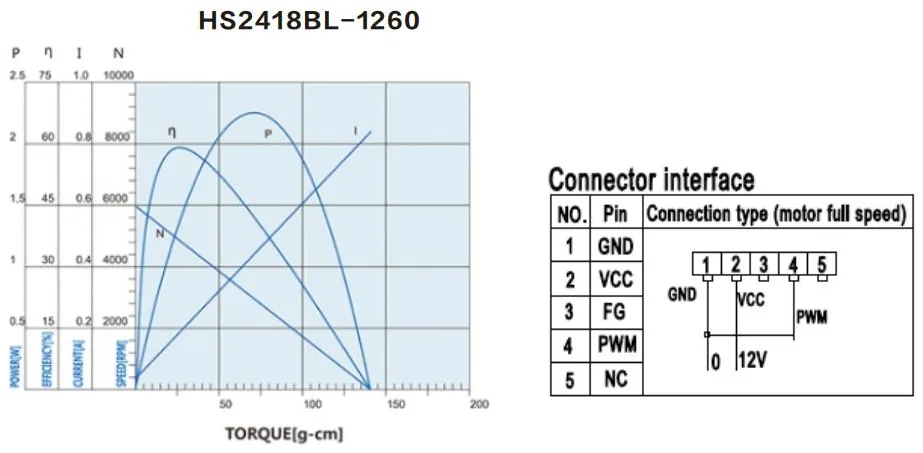

Performance curves
