Brushless DC driver
Hall-sensor BLDC motor driver
- Supply
- 24–48 V DC
- Motor feedback
- Hall sensors
Typical applications
- Household appliances
- Medical devices
- Fitness equipment
Features
- DC supply, 24–48 V (as labelled on the driver)
- Inputs for three motor phases and five Hall-sensor lines
- Forward and reverse, start and stop, and electric brake inputs
- Speed control by 0–5 V analogue input or an external potentiometer
- Speed pulse output (PG) and alarm output (ALM)
- RS485 port for control and parameter changes from a computer
- Built-in potentiometers for speed gain and current limit, each 0–100 %

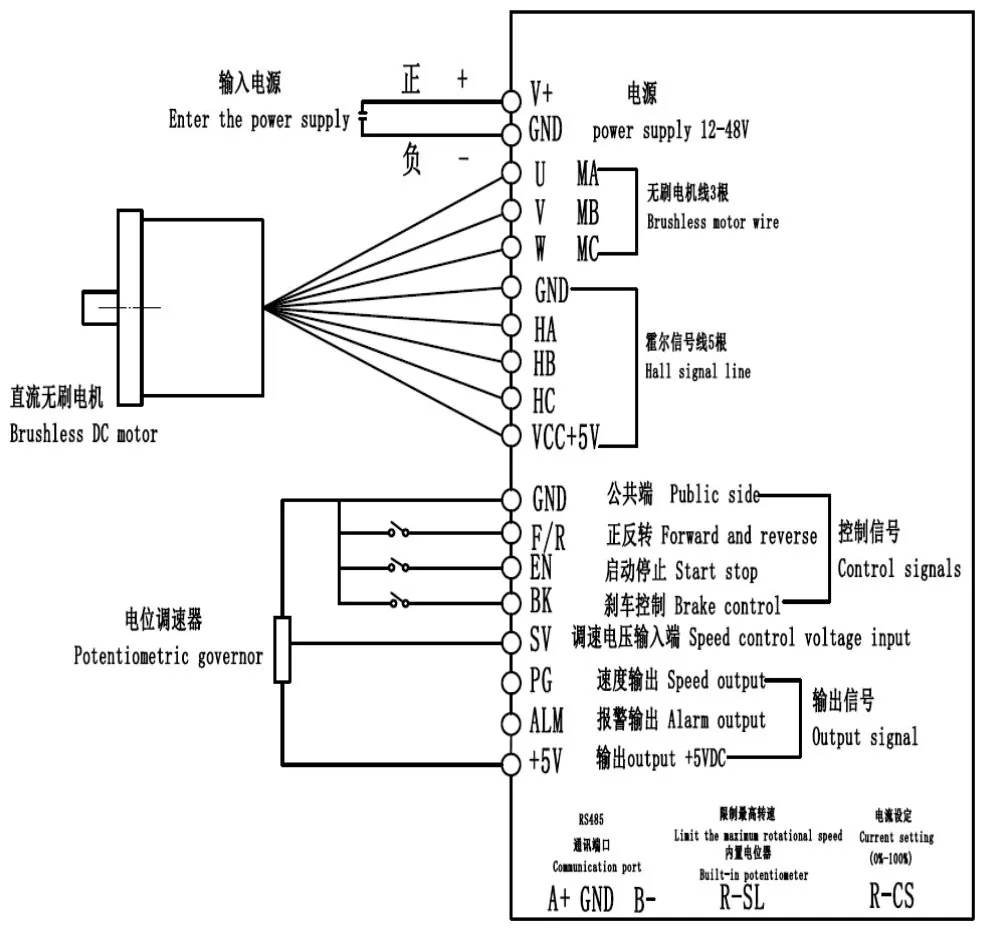

Wiring

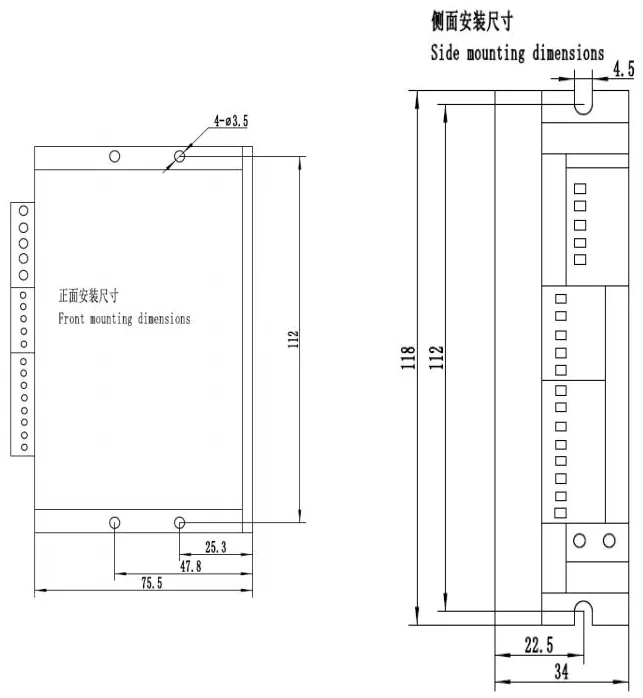

Mounting dimensions
