- HS37ZJSX-510S
HS37ZJSX-510S

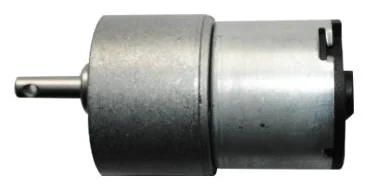

Spur gear motor, 37 mm gearbox, 510 motor
- Rated voltage
- 12–24 V
- No-load speed
- 20–92 rpm
- Torque at max. efficiency
- 744–1268 mN·m
- Output power
- 2.44–5.83 W
Typical applications
- Banking equipment
- Safes
- Gaming machines
Performance
| Version | HS37ZJSX-510S-90K | HS37ZJSX-510S-270K |
|---|---|---|
| Voltage | ||
| Operating range (V) | 9.0–15.0 | 18.0–30.0 |
| Rated voltage (V) | 12 | 24 |
| No load | ||
| Speed (rpm) | 92 | 20 |
| Current (A) | 0.15 | 0.05 |
| At maximum efficiency | ||
| Speed (rpm) | 76 | 18 |
| Current (A) | 0.71 | 0.16 |
| Torque (mN·m) | 744 | 1268‡ |
| Output power (W) | 5.83 | 2.44 |
| Stall | ||
| Torque (mN·m) | 4290 | 5500 |
| Current (A) | 3.4 | 0.8 |
- ‡ Corrected from the catalogue's second torque column, which agrees with the output power or the speed–torque line.
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 17 mm | 1:10 |
| 24 mm | 1:30 to 1:100 |
| 26.5 mm | 1:100 to 1:300 |
| 29 mm | 1:300 to 1:900 |
- Other gearbox lengths and reduction ratios can be developed to order.

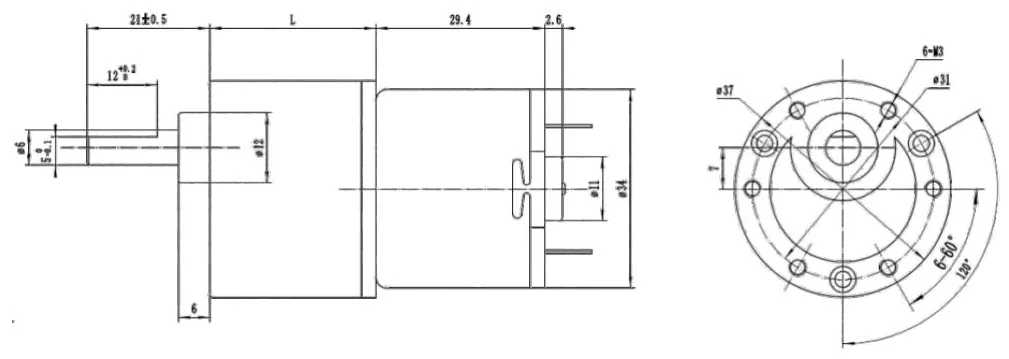

Dimensions

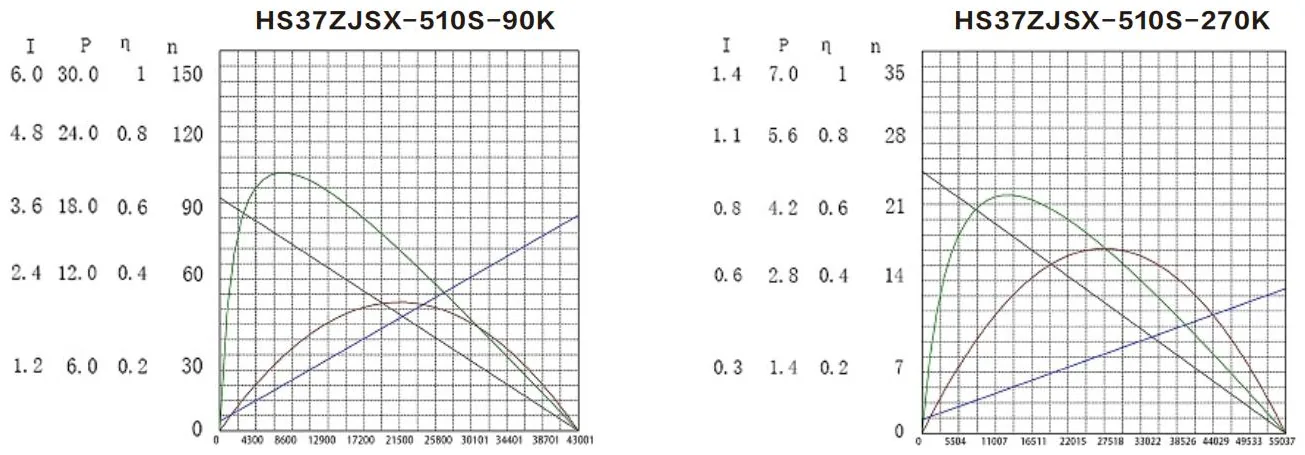

Performance curves
Other gear motors
Worm gear motor, 32 x 46 mm gearbox, 370 motorHS3246WJSX-370
12 V · no-load 3–31 rpm
Planetary gear motor, 20 mm gearbox, 180 motorHS20JSX-180
4.5–12 V · no-load 18–128 rpm
Planetary gear motor, 22 mm gearbox, 130 motorHS22JSX-130
6–9 V · no-load 24–112 rpm
Planetary gear motor, 24 mm gearbox, 370 motorHS24JSX-370
12 V · no-load 46–148 rpm
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS37ZJSX-510S.
