HRS-535SH
Carbon-brush DC motor, 535 frame
- Rated voltage
- 12–24 V
- No-load speed
- 5000–10400 rpm
- Torque at max. efficiency
- 16.8–27.3 mN·m
- Output power
- 6.5–22.8 W
Typical applications
- Household appliances
- Office automation equipment
- Printers and copiers
Performance
| Version | HRS-535SH-2495 | HRS-535SH-2495 (12 V) |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 6.0–15.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 10400 | 5000 |
| Current (A) | 0.25 | 0.2 |
| At maximum efficiency | ||
| Speed (rpm) | 7979 | 3750 |
| Current (A) | 1.8 | 1.15 |
| Torque (mN·m) | 27.3 | 16.8 |
| Output power (W) | 22.8 | 6.5 |
| Stall | ||
| Torque (mN·m) | 76 | 55.7 |
| Current (A) | 4.5 | 3.1 |

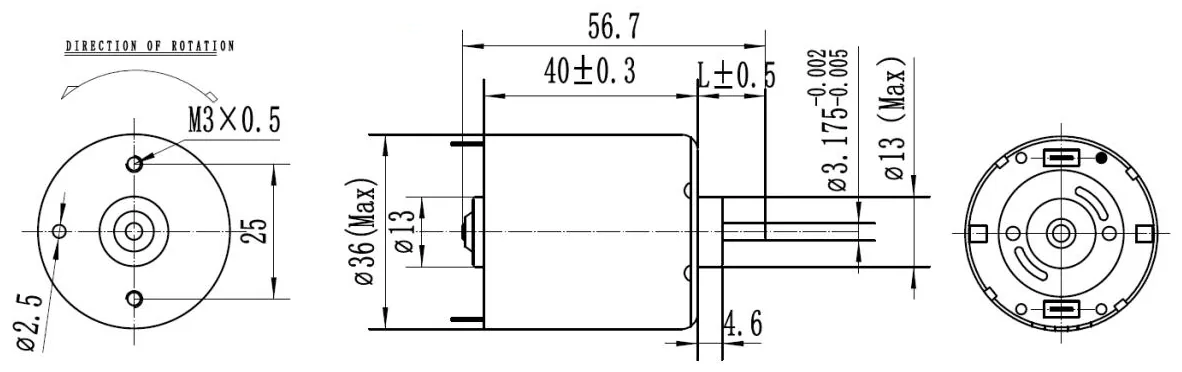

Dimensions

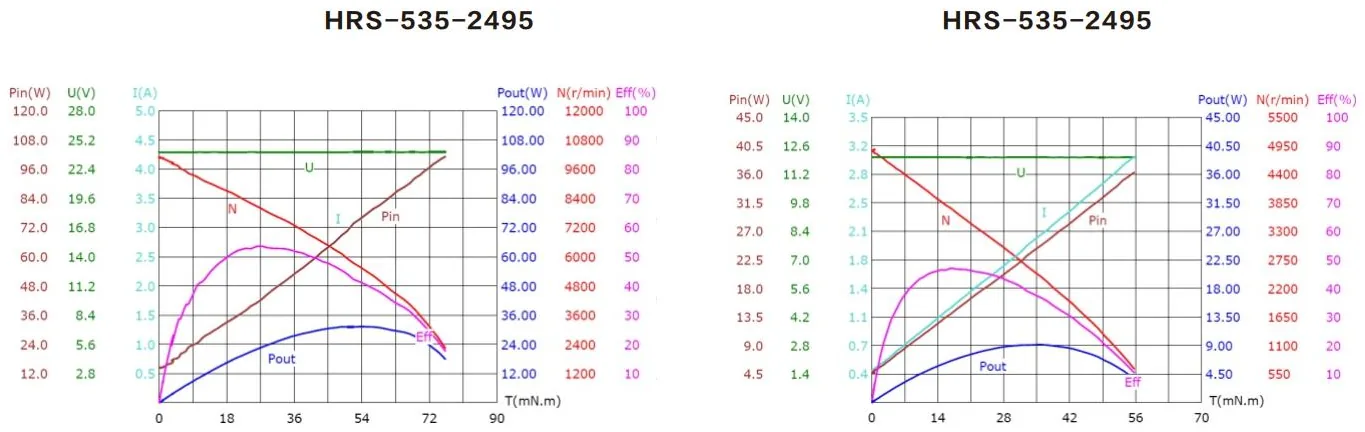

Performance curves
Other brushed DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HRS-535SH.
