HBL-2430
Brushless DC motor, 24.4 mm body
- Rated voltage
- 12 V
- No-load speed
- 5380 rpm
- Torque at max. efficiency
- 6.68 mN·m
- Output power
- 3.22 W
Typical applications
- Household appliances
- Medical devices
- Smart curtains
- Printers and copiers
Performance
| Version | HS2430-1250 |
|---|---|
| Voltage | |
| Operating range (V) | 10.0–15.0 |
| Rated voltage (V) | 12 |
| No load | |
| Speed (rpm) | 5380 |
| Current (A) | 0.09 |
| At maximum efficiency | |
| Speed (rpm) | 4422 |
| Current (A) | 0.4 |
| Torque (mN·m) | 6.68 |
| Output power (W) | 3.22 |
| Stall | |
| Torque (mN·m) | 37.5 |
| Current (A) | 1.91 |

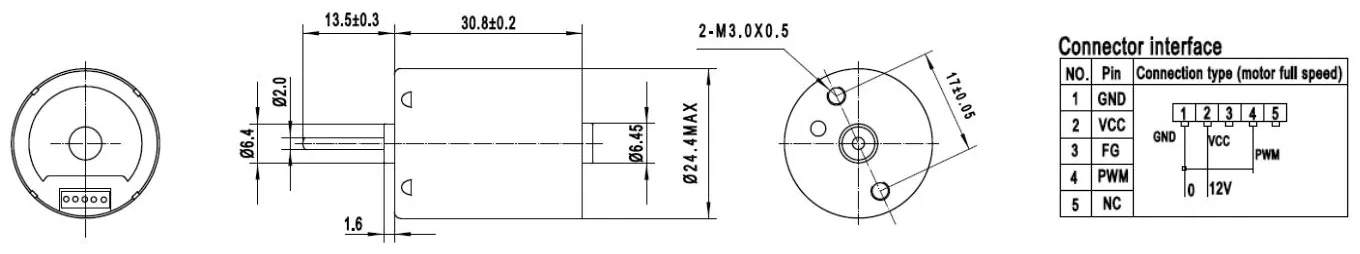

Dimensions

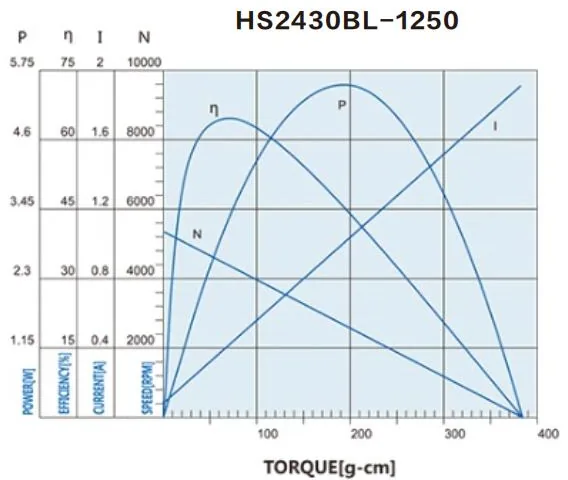

Performance curves
Other brushless DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HBL-2430.
