HRS-555SH
Carbon-brush DC motor, 555 frame
- Rated voltage
- 12–24 V
- No-load speed
- 4600–5600 rpm
- Torque at max. efficiency
- 21–22.4 mN·m
- Output power
- 9.55–11.55 W
Typical applications
- Garden tools
- Office automation equipment
- Power tools
Performance
| Version | HRS-555SH-3824 | HRS-555SH-23110 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 6.0–16.0 | 12.0–30.0 |
| Rated voltage (V) | 12 | 24 |
| No load | ||
| Speed (rpm) | 5600 | 4600 |
| Current (A) | 0.2 | 0.1 |
| At maximum efficiency | ||
| Speed (rpm) | 5060 | 4059 |
| Current (A) | 1.3 | 0.526 |
| Torque (mN·m) | 21 | 22.4 |
| Output power (W) | 11.55 | 9.55 |
| Stall | ||
| Torque (mN·m) | 197 | 178.8 |
| Current (A) | 10.5 | 3.7 |

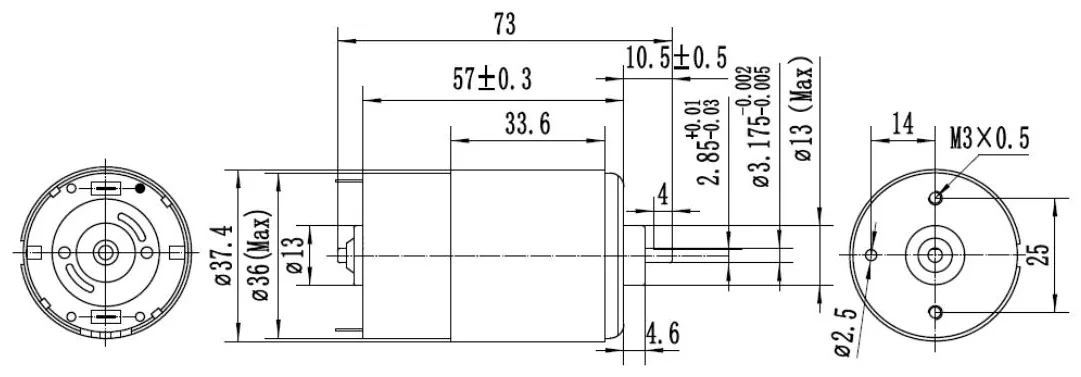

Dimensions
Performance curves
