- HS42JSX-775
HS42JSX-775

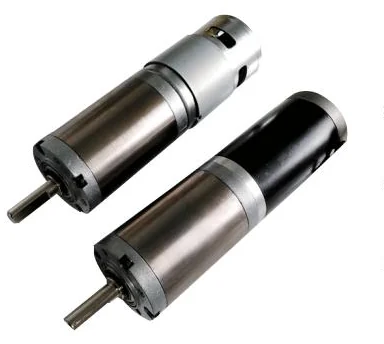

Planetary gear motor, 42 mm gearbox, 775 motor
- Rated voltage
- 24 V
- No-load speed
- 230–375 rpm
- Torque at max. efficiency
- 318–396 mN·m
- Output power
- 7.56–10.16 W
Typical applications
- Automatic valves
- Smart home
- Medical devices
Performance
| Version | HS42JSX-775-5.3K | HS42JSX-775-13K |
|---|---|---|
| Voltage | ||
| Operating range (V) | 15.0–30.0 | 15.0–30.0 |
| Rated voltage (V) | 24 | 24 |
| No load | ||
| Speed (rpm) | 375 | 230 |
| Current (A) | 0.15 | 0.17 |
| At maximum efficiency | ||
| Speed (rpm) | 308 | 183 |
| Current (A) | 0.69 | 0.66 |
| Torque (mN·m) | 318 | 396 |
| Output power (W) | 10.16 | 7.56 |
| Stall | ||
| Torque (mN·m) | 1785 | 1900 |
| Current (A) | 3.2 | 2.55 |
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 39.6 mm | 1:3.6 to 1:5.33 |
| 51.5 mm | 1:13 to 1:28.5 |
| 62.0 mm | 1:46.7 to 1:151 |
| 72.5 mm | 1:168 to 1:807 |
- Other gearbox lengths and reduction ratios can be developed to order.

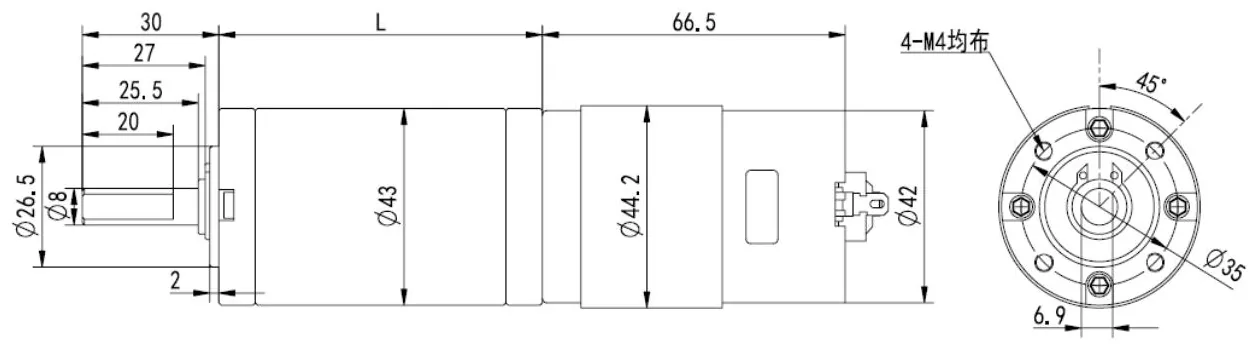

Dimensions

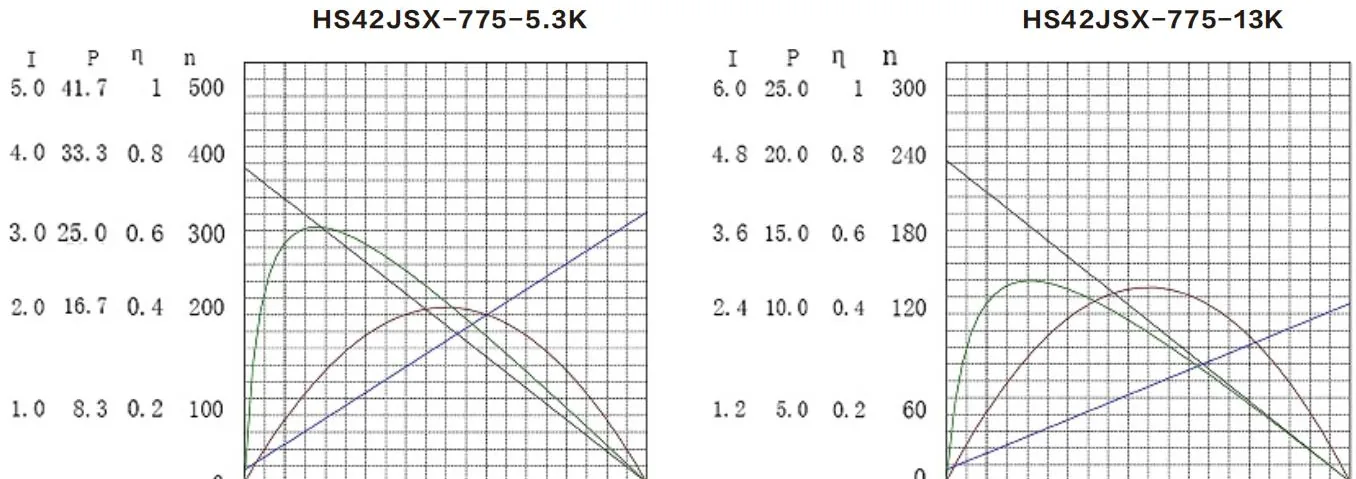

Performance curves
Other gear motors
Spur gear motor, 20 mm gearbox, 180 motorHS20ZJSX-180
2.4–12 V · no-load 41–83 rpm
Spur gear motor, 25 mm gearbox, 370 motorHS25ZJSX-370
3–12 V · no-load 14–54 rpm
Spur gear motor, 37 mm gearbox, 510 motorHS37ZJSX-510S
12–24 V · no-load 20–92 rpm
Worm gear motor, 32 x 46 mm gearbox, 370 motorHS3246WJSX-370
12 V · no-load 3–31 rpm
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS42JSX-775.
