- HS28JSX-365/360
HS28JSX-365/360

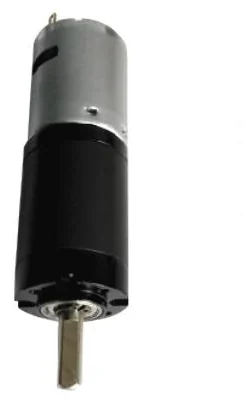

Planetary gear motor, 28 mm gearbox, 365 or 360 motor
- Rated voltage
- 12–24 V
- No-load speed
- 36–125 rpm
- Torque at max. efficiency
- 258–560 mN·m
- Output power
- 0.7–5.73 W
Typical applications
- Automatic valves
- Smart home
- Medical devices
Performance
| Version | HS28JSX-365-80K | HS28JSX-360-125K |
|---|---|---|
| Voltage | ||
| Operating range (V) | 15.0–30.0 | 9.0–15.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 125 | 36 |
| Current (A) | 0.09 | 0.05 |
| At maximum efficiency | ||
| Speed (rpm) | 98 | 26 |
| Current (A) | 0.4 | 0.14 |
| Torque (mN·m) | 560 | 258 |
| Output power (W) | 5.73 | 0.7 |
| Stall | ||
| Torque (mN·m) | 2600 | 968 |
| Current (A) | 1.45 | 0.4 |
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 25.3 mm | 1:4 to 1:5 |
| 31.0 mm | 1:16 to 1:25 |
| 36.7 mm | 1:64 to 1:125 |
| 42.4 mm | 1:256 to 1:625 |
- Other gearbox lengths and reduction ratios can be developed to order.

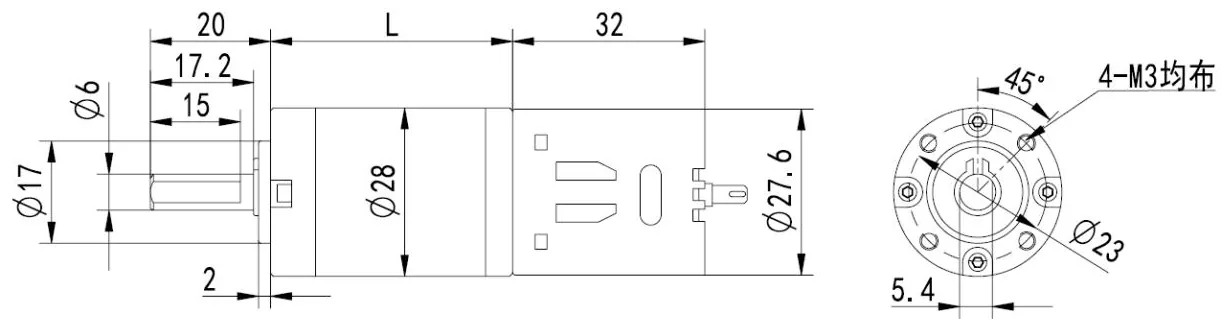

Dimensions

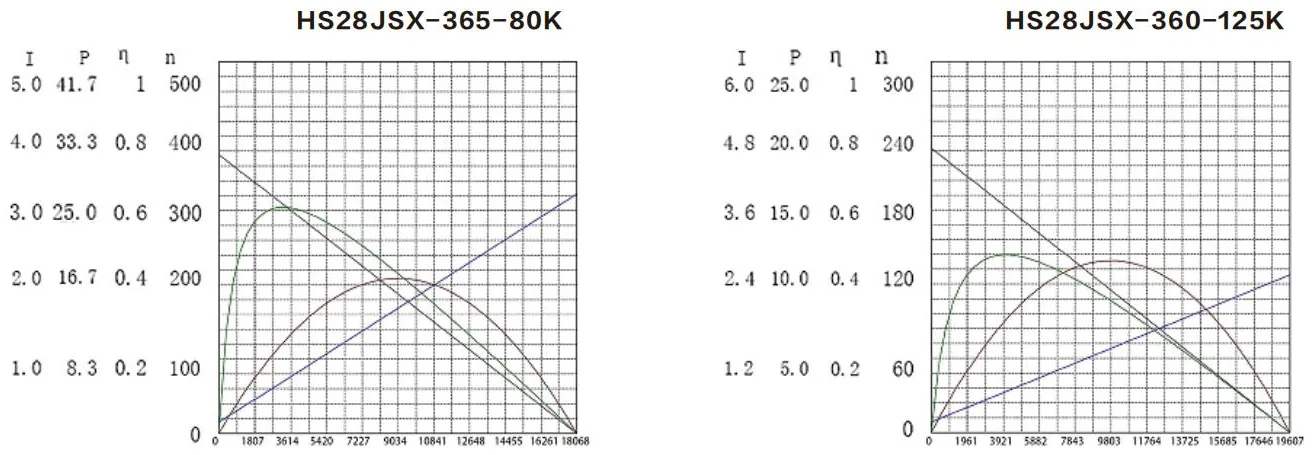

Performance curves
Other gear motors
Planetary gear motor, 36 mm gearbox, 555 or 545 motorHS36JSX-555/545
12–24 V · no-load 60–235 rpm
Planetary gear motor, 42 mm gearbox, 775 motorHS42JSX-775
24 V · no-load 230–375 rpm
Spur gear motor, 20 mm gearbox, 180 motorHS20ZJSX-180
2.4–12 V · no-load 41–83 rpm
Spur gear motor, 25 mm gearbox, 370 motorHS25ZJSX-370
3–12 V · no-load 14–54 rpm
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS28JSX-365/360.
