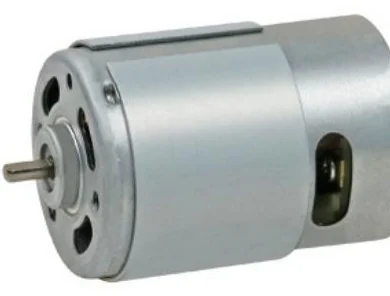

HRS-545SH
Carbon-brush DC motor, 545 frame
- Rated voltage
- 12–24 V
- No-load speed
- 7000–8600 rpm
- Torque at max. efficiency
- 17.2–25.5 mN·m
- Output power
- 11.2–16.1 W
Typical applications
- Household appliances
- Office automation equipment
- Printers and copiers
Performance
| Version | HRS-545SH-2490 | HRS-545SH-3045 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 6.0–15.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 7000 | 8600 |
| Current (A) | 0.2 | 0.35 |
| At maximum efficiency | ||
| Speed (rpm) | 6026 | 7130 |
| Current (A) | 1.3 | 1.55 |
| Torque (mN·m) | 25.5 | 17.2 |
| Output power (W) | 16.1 | 11.2 |
| Stall | ||
| Torque (mN·m) | 165 | 95.3 |
| Current (A) | 5.9 | 6.9 |

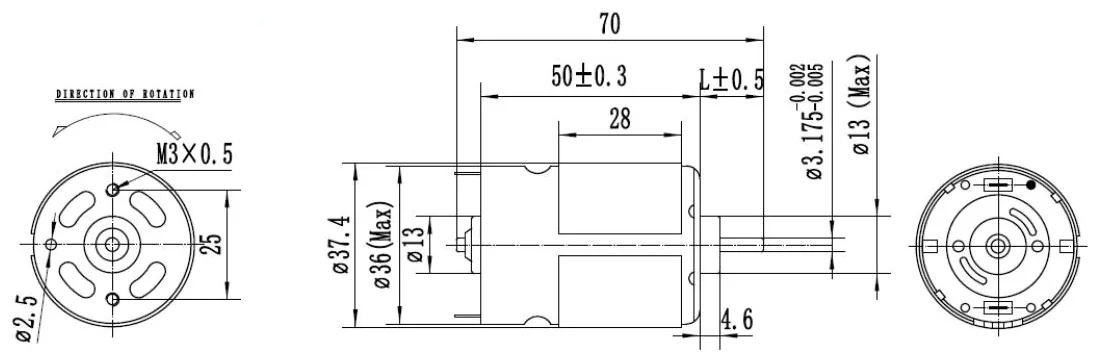

Dimensions

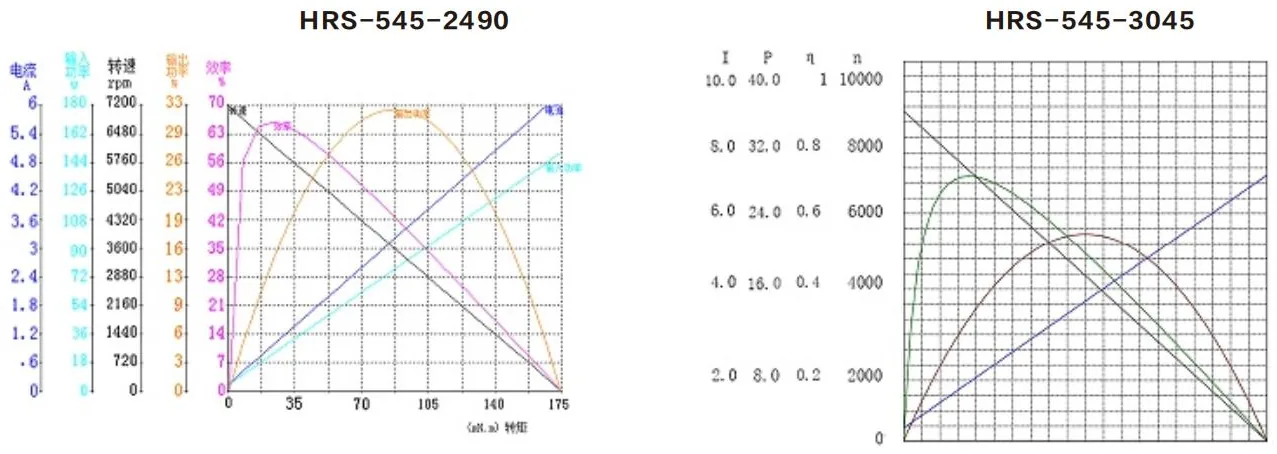

Performance curves
Other brushed DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HRS-545SH.
