HRS-365SH
Carbon-brush DC motor, 365 frame
- Rated voltage
- 18–24 V
- No-load speed
- 10500–19000 rpm
- Torque at max. efficiency
- 5–7.7 mN·m
- Output power
- 4.3–12.88 W
Typical applications
- Household appliances
- Hair dryers and massagers
Performance
| Version | HRS-365SH-12190 | HRS-365SH-2170 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 6.0–20.0 |
| Rated voltage (V) | 24 | 18 |
| No load | ||
| Speed (rpm) | 10500 | 19000 |
| Current (A) | 0.15 | 0.21 |
| At maximum efficiency | ||
| Speed (rpm) | 7779 | 16013 |
| Current (A) | 0.33 | 1.13 |
| Torque (mN·m) | 5 | 7.7 |
| Output power (W) | 4.3 | 12.88 |
| Stall | ||
| Torque (mN·m) | 25.7 | 49.8 |
| Current (A) | 1.25 | 6.04 |

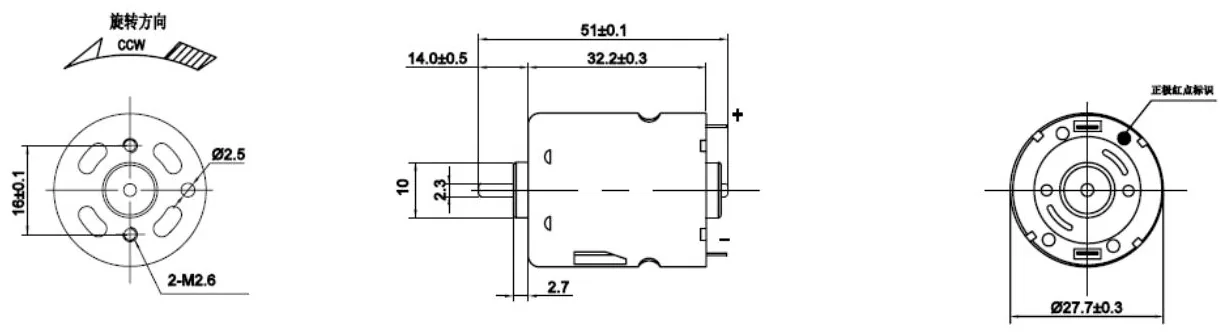

Dimensions

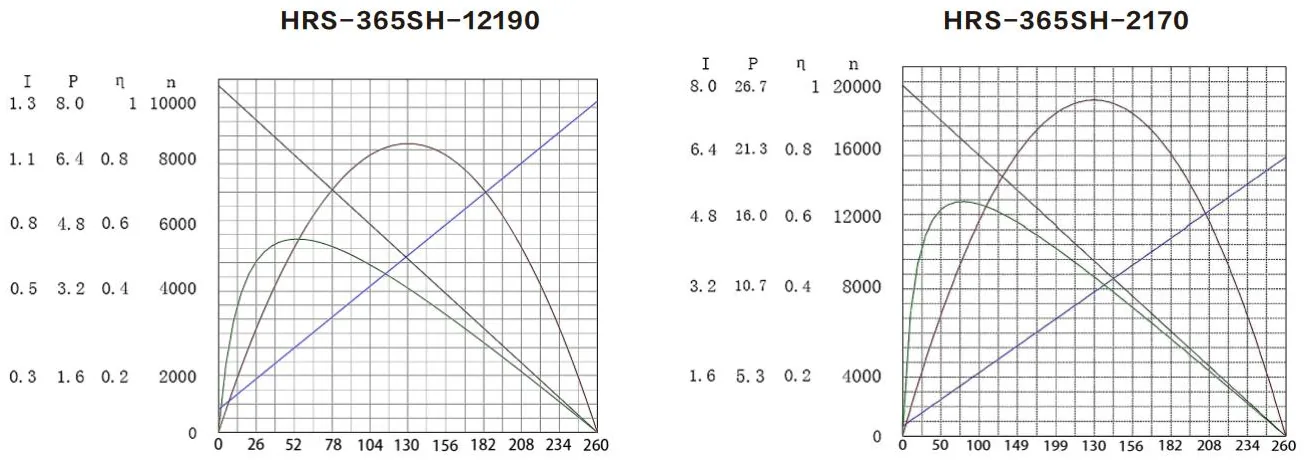

Performance curves
