HS24JSX-370

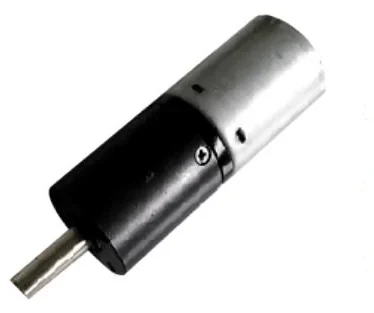

Planetary gear motor, 24 mm gearbox, 370 motor
- Rated voltage
- 12 V
- No-load speed
- 46–148 rpm
- Torque at max. efficiency
- 45–248 mN·m
- Output power
- 0.58–1.02 W
Typical applications
- Automatic valves
- Remote-control locks
- Medical devices
Performance
| Version | HS24JSX-370-125K | HS24JSX-370-25K |
|---|---|---|
| Voltage | ||
| Operating range (V) | 9.0–15.0 | 9.0–15.0 |
| Rated voltage (V) | 12 | 12 |
| No load | ||
| Speed (rpm) | 46 | 148 |
| Current (A) | 0.03 | 0.02 |
| At maximum efficiency | ||
| Speed (rpm) | 39 | 122 |
| Current (A) | 0.17 | 0.09 |
| Torque (mN·m) | 248 | 45 |
| Output power (W) | 1.02 | 0.58 |
| Stall | ||
| Torque (mN·m) | 1710 | 258 |
| Current (A) | 1.01 | 0.44 |
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 20.5 mm | 1:4 to 1:5 |
| 26.2 mm | 1:16 to 1:25 |
| 32.0 mm | 1:64 to 1:125 |
- Other gearbox lengths and reduction ratios can be developed to order.

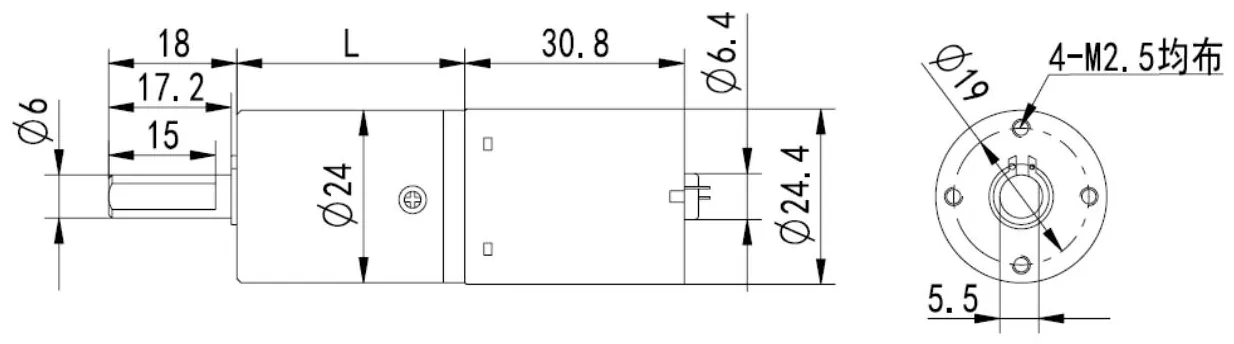

Dimensions

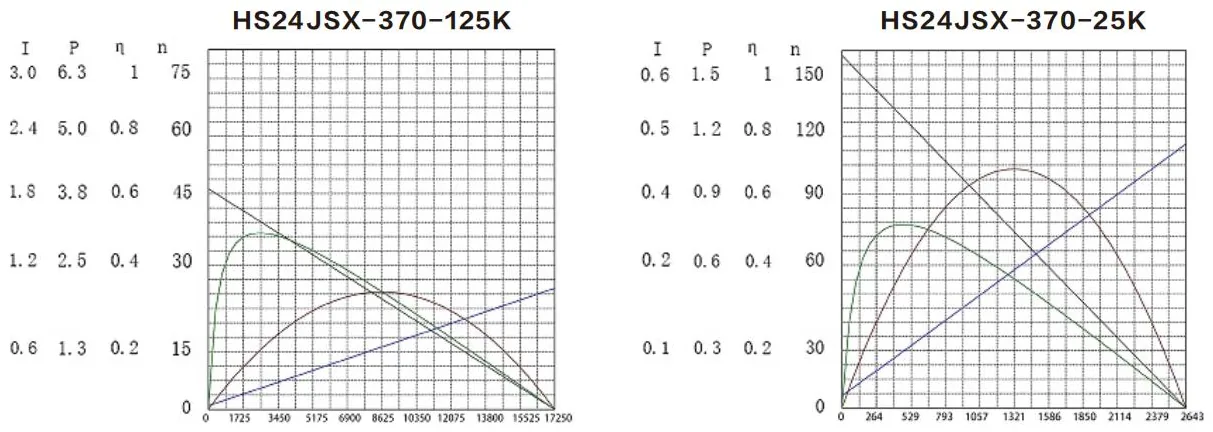

Performance curves
Other gear motors
Planetary gear motor, 28 mm gearbox, 365 or 360 motorHS28JSX-365/360
12–24 V · no-load 36–125 rpm
Planetary gear motor, 36 mm gearbox, 555 or 545 motorHS36JSX-555/545
12–24 V · no-load 60–235 rpm
Planetary gear motor, 42 mm gearbox, 775 motorHS42JSX-775
24 V · no-load 230–375 rpm
Spur gear motor, 20 mm gearbox, 180 motorHS20ZJSX-180
2.4–12 V · no-load 41–83 rpm
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS24JSX-370.
