H80ZYT
Carbon-brush DC motor, 80 mm body, high voltage
- Rated voltage
- 170 V
- No-load speed
- 2700 rpm
- Torque at max. efficiency
- 457.7 mN·m
- Output power
- 99.7 W
Typical applications
- Seat lifting
- Industrial equipment
- Intelligent control
Performance
| Version | H80ZYT-2385-2700 |
|---|---|
| Voltage | |
| Operating range (V) | 150–180 |
| Rated voltage (V) | 170 |
| No load | |
| Speed (rpm) | 2700 |
| Current (A) | 0.12 |
| At maximum efficiency | |
| Speed (rpm) | 2080 |
| Current (A) | 0.816 |
| Torque (mN·m) | 457.7 |
| Output power (W) | 99.7† |
| Stall | |
| Torque (mN·m) | 2100 |
| Current (A) | 3.1 |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

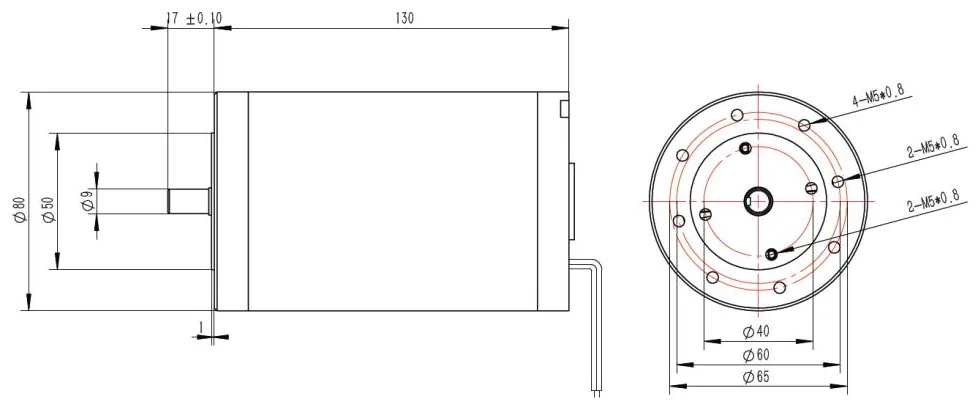

Dimensions

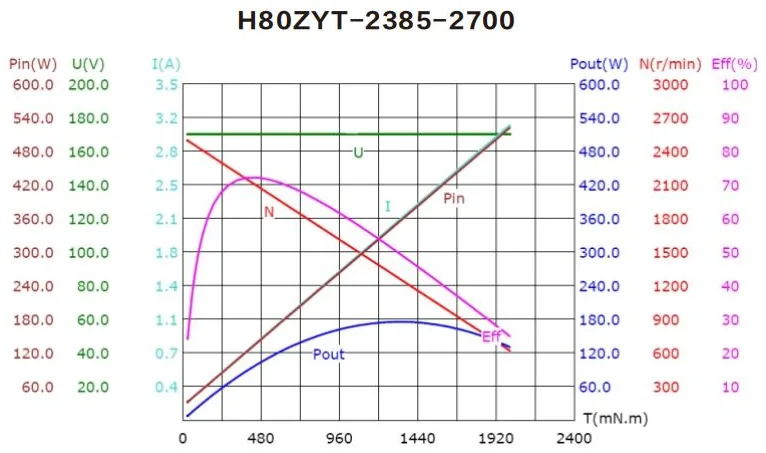

Performance curves
Other brushed DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the H80ZYT.
