HRS-775SH, Carbon-brush DC motor, 775 frame

HRS-775SH

Carbon-brush DC motor, 775 frame

Rated voltage: 16.8–18 V
No-load speed: 18000–19500 rpm
Torque at max. efficiency: 136.8–152.8 mN·m
Output power: 221.02–268.72 W

Typical applications

Garden tools
Office automation equipment

Request a quote Request datasheet

Performance

Version	HRS-775SH-7114	HRS-775SH-8015
Voltage
Operating range (V)	6.0–20.0	6.0–20.0
Rated voltage (V)	18	16.8
No load
Speed (rpm)	19500	18000
Current (A)	2.6	2.6
At maximum efficiency
Speed (rpm)	17086	15627
Current (A)	18.4	17.12
Torque (mN·m)	152.8	136.8
Output power (W)	268.72	221.02
Stall
Torque (mN·m)	1230	1037
Current (A)	130.22	112.73

Dimensions

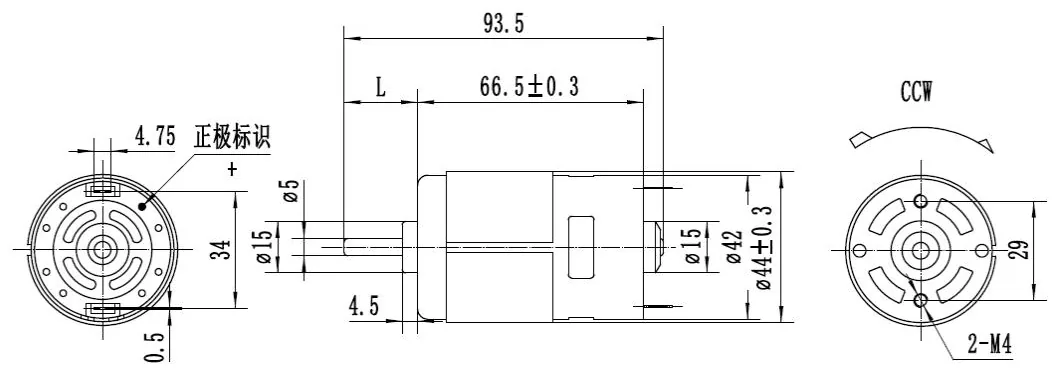

Outline drawing of the HRS-775SH — Outline drawing, dimensions in mm. Ask for a 2D or 3D file for your design.

Performance curves

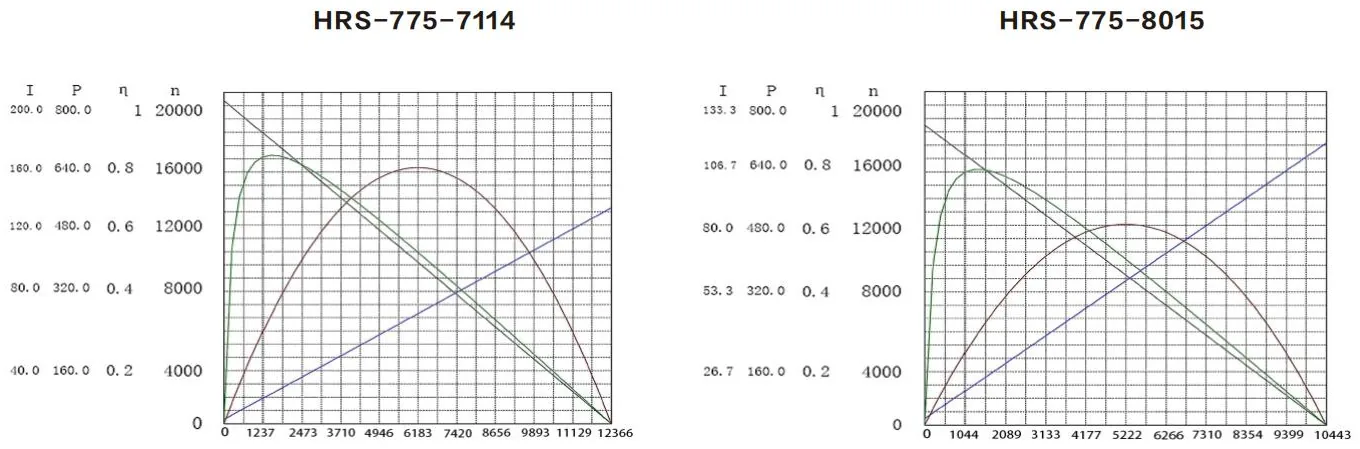

Performance curves of the HRS-775SH — Tested curves from our catalogue: current (I), output power (P), efficiency (η) and speed (n) against torque. Curve titles are as printed in the catalogue.
