- HS3246WJSX-370
HS3246WJSX-370
Worm gear motor, 32 x 46 mm gearbox, 370 motor
- Rated voltage
- 12 V
- No-load speed
- 3–31 rpm
- Torque at max. efficiency
- 267–910 mN·m
- Output power
- 0.24–0.76 W
Typical applications
- Range hoods
- Smart home
Performance
| Version | HS3246WJSX-370-136K | HS3246WJSX-370-828K |
|---|---|---|
| Voltage | ||
| Operating range (V) | 9.0–15.0 | 9.0–15.0 |
| Rated voltage (V) | 12 | 12 |
| No load | ||
| Speed (rpm) | 31 | 3 |
| Current (A) | 0.012 | 0.008 |
| At maximum efficiency | ||
| Speed (rpm) | 27 | 2 |
| Current (A) | 0.09 | 0.04 |
| Torque (mN·m) | 267‡ | 910 |
| Output power (W) | 0.76 | 0.24 |
| Stall | ||
| Torque (mN·m) | 2200 | 5400 |
| Current (A) | 0.66 | 0.2 |
- ‡ Corrected from the catalogue's second torque column, which agrees with the output power or the speed–torque line.
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 46 mm | 1:66, 1:136, 1:165, 1:272, 1:330, 1:458, 1:578, 1:682, 1:828, 1:1156, 1:1364, 1:1656 |
- Other gearbox lengths and reduction ratios can be developed to order.

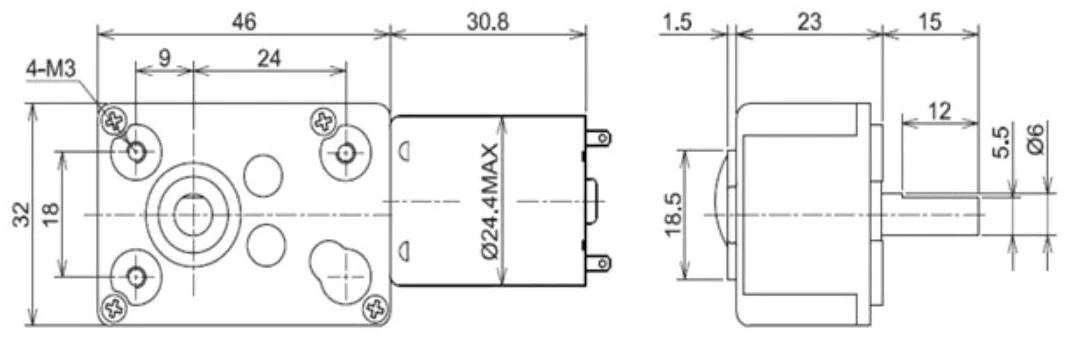

Dimensions

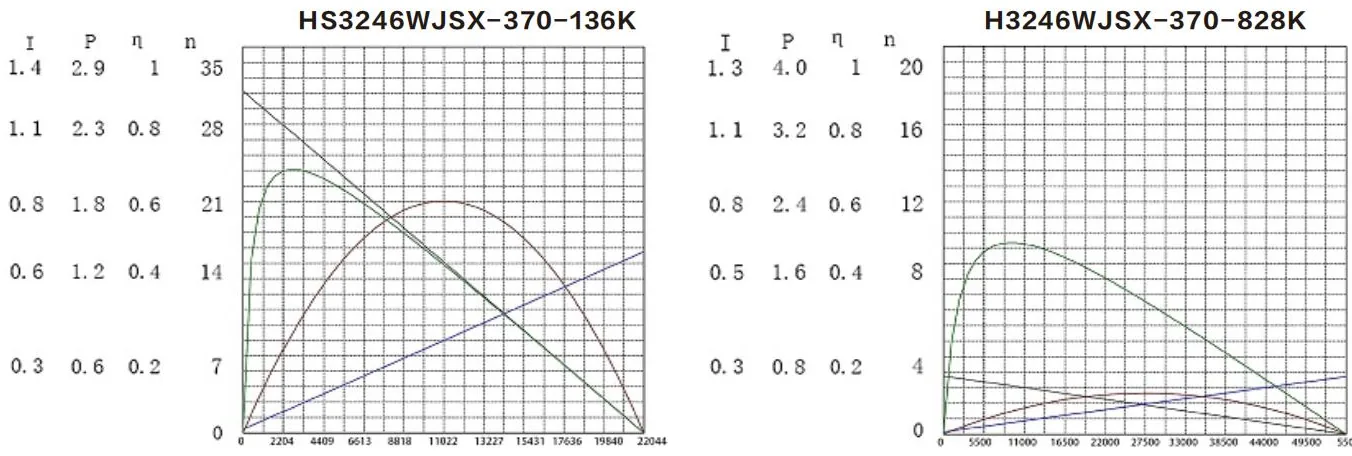

Performance curves
