H73ZYT
Carbon-brush DC motor, 73 mm body
- Rated voltage
- 36 V
- No-load speed
- 5700 rpm
- Torque at max. efficiency
- 408.7 mN·m
- Output power
- 197 W
Typical applications
- Seat lifting
- Industrial equipment
- Intelligent control
Performance
| Version | H73ZYT-3660 |
|---|---|
| Voltage | |
| Operating range (V) | 18.0–36.0 |
| Rated voltage (V) | 36 |
| No load | |
| Speed (rpm) | 5700 |
| Current (A) | 0.38 |
| At maximum efficiency | |
| Speed (rpm) | 4600 |
| Current (A) | 7.06 |
| Torque (mN·m) | 408.7 |
| Output power (W) | 197† |
| Stall | |
| Torque (mN·m) | 2220 |
| Current (A) | 36.6 |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

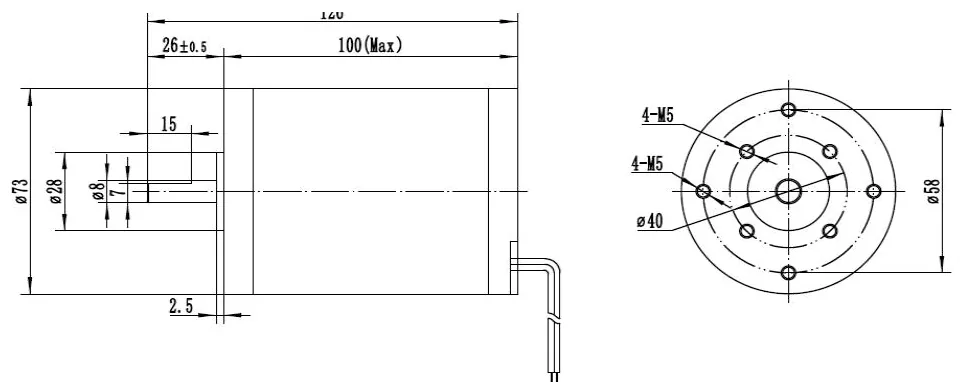

Dimensions
Performance curves
