HS90 outer-rotor generator
Outer-rotor brushless generator, 90 mm
- Gear ratio in tests
- 1:26
- No-load voltage
- 24.0–65.0 V at 150–375 rpm
Typical applications
- Industrial equipment
- Fitness equipment
Theoretical voltage after bridge rectification
| Generator speed (rpm) | 150 | 225 | 300 | 375 |
|---|---|---|---|---|
| Maximum no-load voltage (V) | 24.0 | 36.0 | 50.0 | 65.0 |
- Measured through a 1:26 gear ratio.

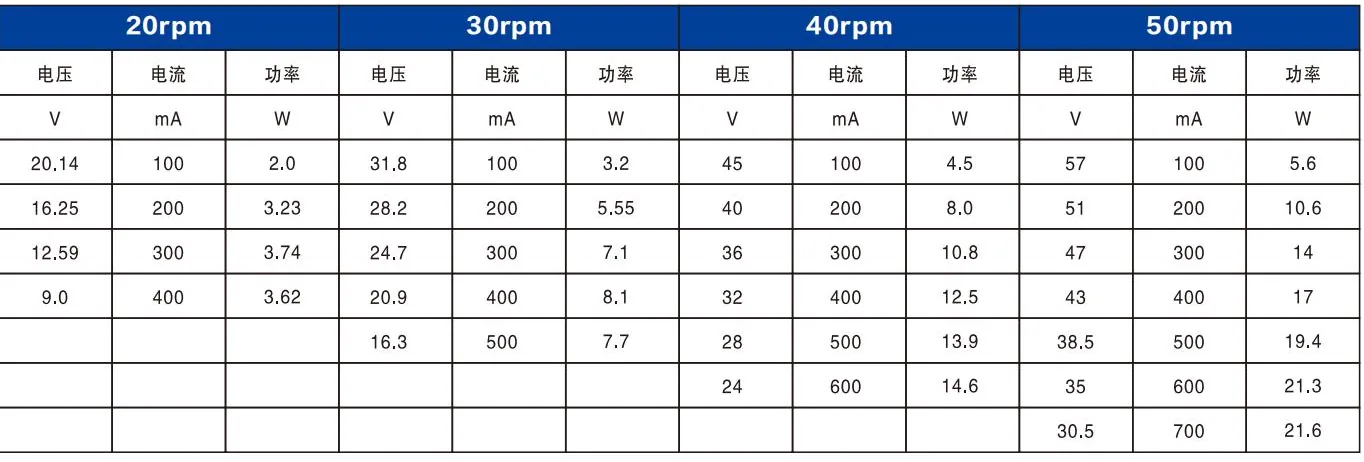

Voltage and power under load

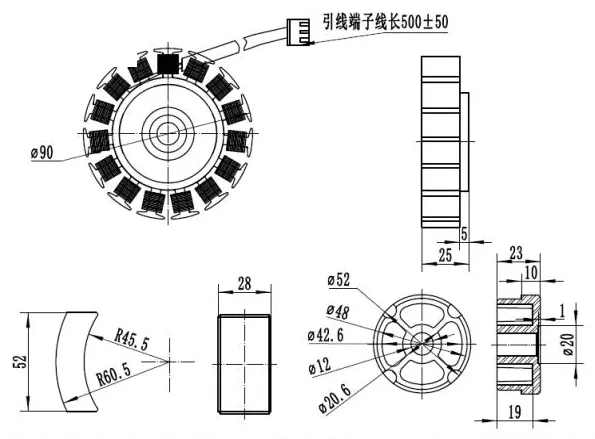

Dimensions
Other brushless DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS90 outer-rotor generator.
