HRS-385SH
Carbon-brush DC motor, 385 frame
- Rated voltage
- 20–24 V
- No-load speed
- 11170–17200 rpm
- Torque at max. efficiency
- 9.49–9.5 mN·m
- Output power
- 8.98–14.3 W
Typical applications
- Household appliances
- Hair dryers
- Hand dryers
Performance
| Version | HRS-385SH-16120 | HRS-385SH-2073 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 9.0–24.0 |
| Rated voltage (V) | 24 | 20 |
| No load | ||
| Speed (rpm) | 11170 | 17200 |
| Current (A) | 0.122 | 0.2 |
| At maximum efficiency | ||
| Speed (rpm) | 9110 | 14423 |
| Current (A) | 0.54 | 1.04 |
| Torque (mN·m) | 9.5 | 9.49 |
| Output power (W) | 8.98 | 14.3 |
| Stall | ||
| Torque (mN·m) | 51.9 | 58.8 |
| Current (A) | 2.37 | 5.4 |

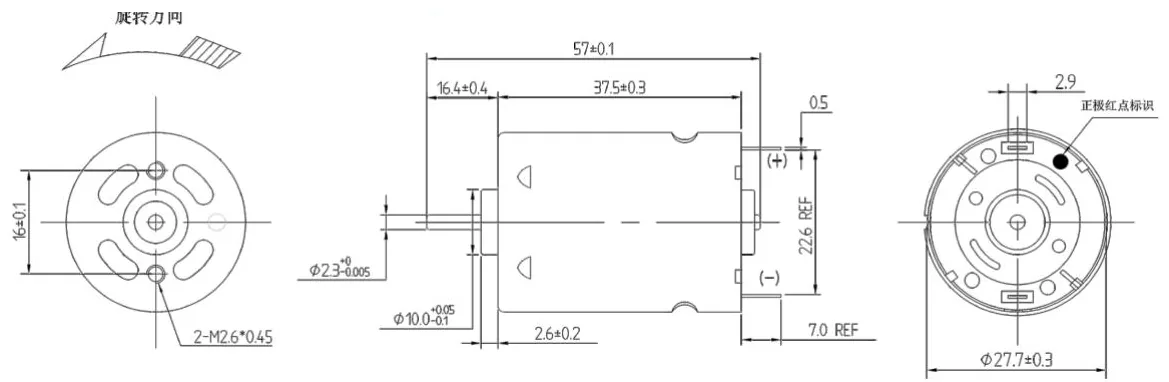

Dimensions

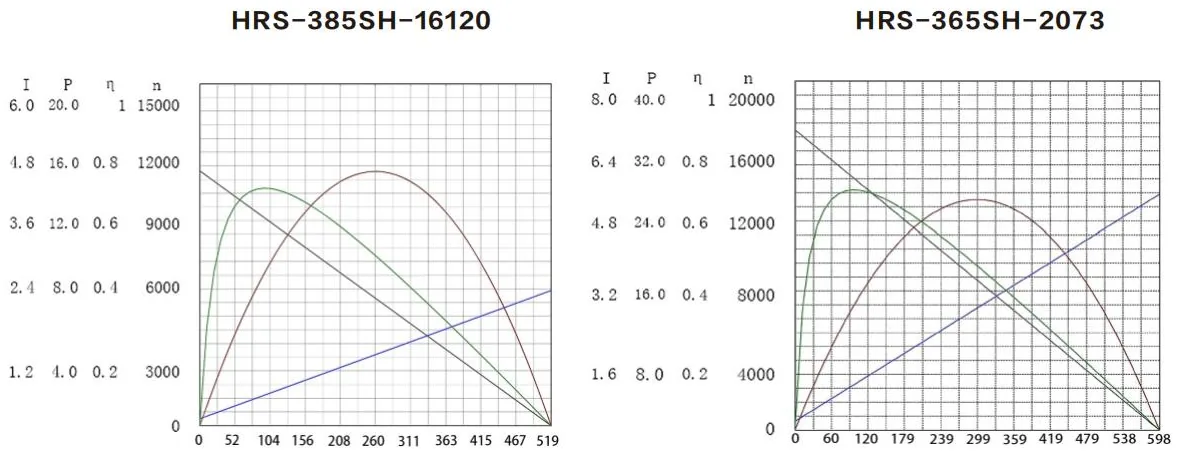

Performance curves
