HRF-500TB
Metal-brush DC motor, 500 frame
- Rated voltage
- 6 V
- No-load speed
- 2700–3700 rpm
- Torque at max. efficiency
- 1.38–1.7 mN·m
- Output power
- 0.3–0.55 W
Typical applications
- CD players
- Fragrance sprayers
Performance
| Version | HRF-500TB-12560 | HRF-500TB-14415 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 4.5–7.5 | 4.5–7.5 |
| Rated voltage (V) | 6 | 6 |
| No load | ||
| Speed (rpm) | 2700 | 3700 |
| Current (A) | 0.02 | 0.024 |
| At maximum efficiency | ||
| Speed (rpm) | 2092 | 3091 |
| Current (A) | 0.07 | 0.12 |
| Torque (mN·m) | 1.38 | 1.7 |
| Output power (W) | 0.3 | 0.55 |
| Stall | ||
| Torque (mN·m) | 6.2 | 10.4 |
| Current (A) | 0.241 | 0.62 |

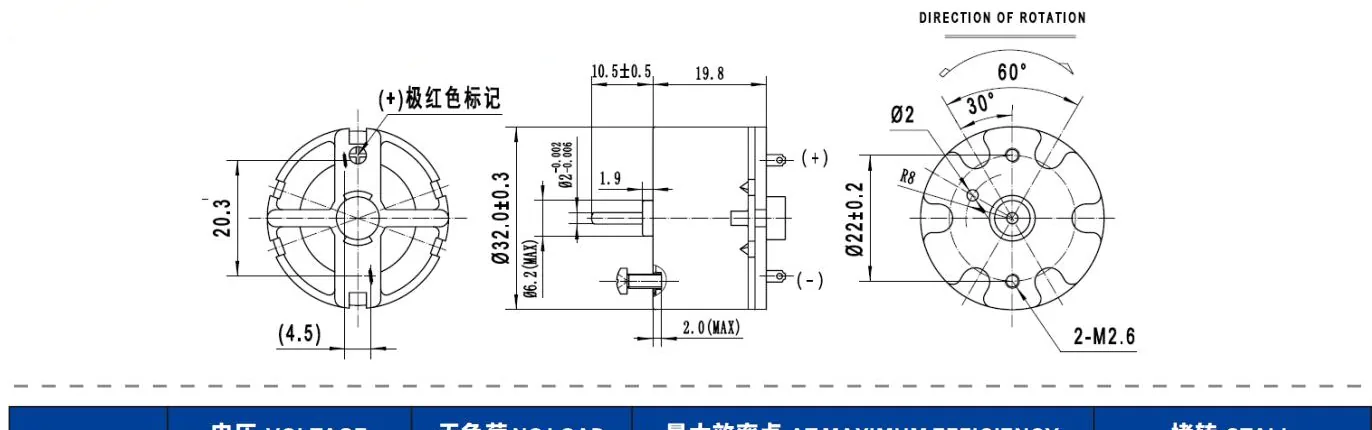

Dimensions

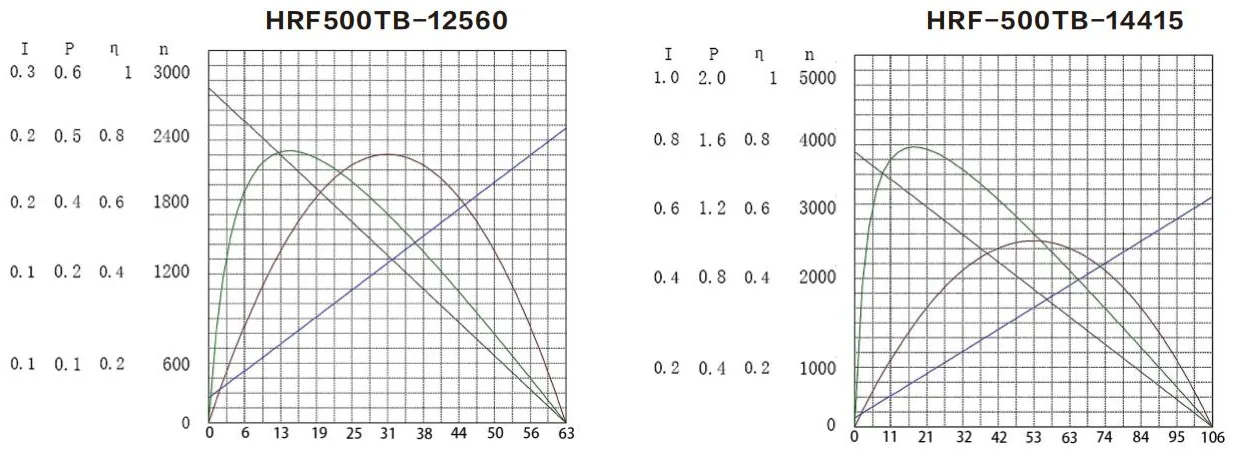

Performance curves
Other brushed DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HRF-500TB.
