H63ZYT
Carbon-brush DC motor, 63 mm body
- Rated voltage
- 12–24 V
- No-load speed
- 2700–3600 rpm
- Torque at max. efficiency
- 75–109 mN·m
- Output power
- 19.3–34.2 W
Typical applications
- Seat lifting
- Industrial equipment
- Intelligent control
Performance
| Version | H63ZYT105-2700 | H63ZYT105-3600 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 18.0–24.0 | 6.0–12.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 2700 | 3600 |
| Current (A) | 0.25 | 0.4 |
| At maximum efficiency | ||
| Speed (rpm) | 2455 | 3000 |
| Current (A) | 1.115 | 3.82 |
| Torque (mN·m) | 75 | 109 |
| Output power (W) | 19.3† | 34.2† |
| Stall | ||
| Torque (mN·m) | 595 | 659 |
| Current (A) | 6.5 | 21.6 |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

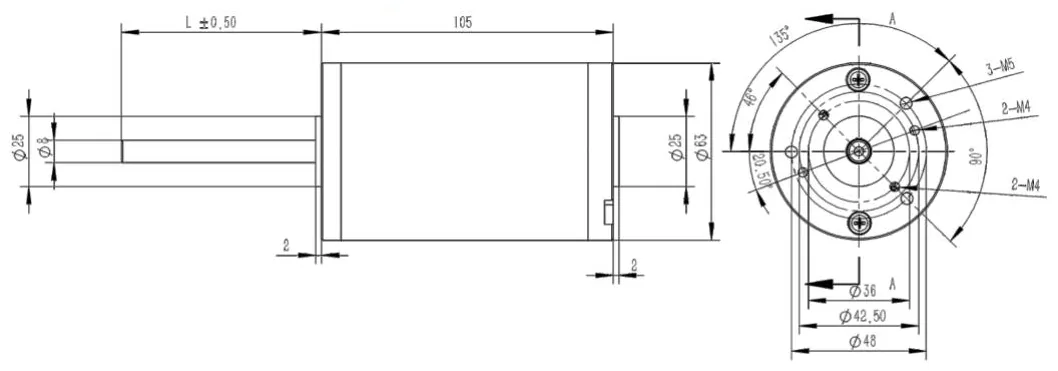

Dimensions

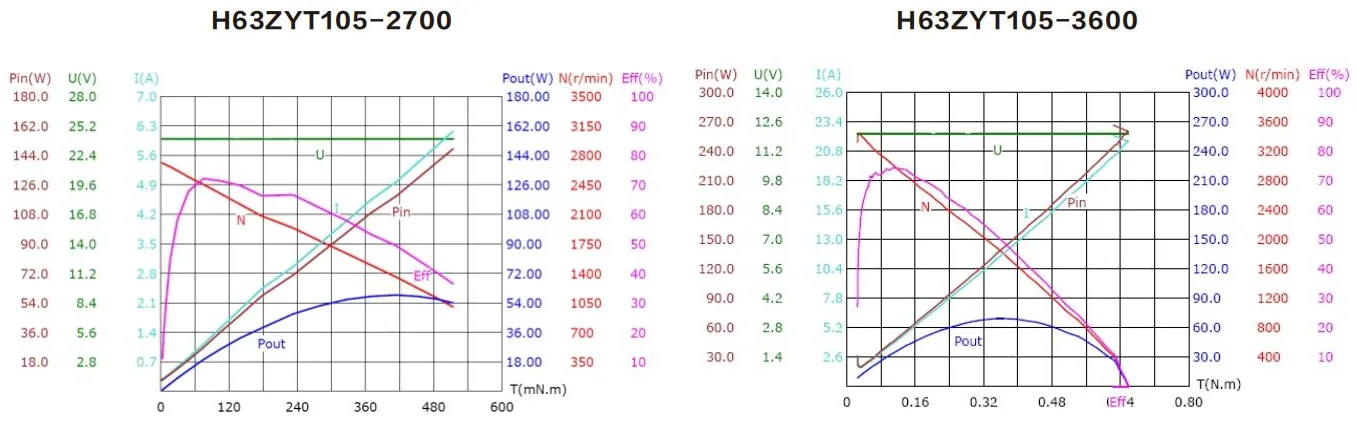

Performance curves
