HRF-370CH
Metal-brush DC motor, 370 frame
- Rated voltage
- 3–12 V
- No-load speed
- 3050–4500 rpm
- Torque at max. efficiency
- 1.47–2.2 mN·m
- Output power
- 0.41–0.89 W
Typical applications
- Kitchen appliances
- Blood pressure monitors
- Car air-conditioning fan regulators
Performance
| Version | HRF-370CH-22170 | HRF-370CH-11670 | HRF-370CH-13400 |
|---|---|---|---|
| Voltage | |||
| Operating range (V) | 1.5–5.0 | 6.0–15.0 | 6.0–15.0 |
| Rated voltage (V) | 3 | 12 | 12 |
| No load | |||
| Speed (rpm) | 3050 | 3100 | 4500 |
| Current (A) | 0.05 | 0.01 | 0.018 |
| At maximum efficiency | |||
| Speed (rpm) | 2595 | 2550 | 3818 |
| Current (A) | 0.18 | 0.055 | 0.1 |
| Torque (mN·m) | 1.5 | 1.47 | 2.2 |
| Output power (W) | 0.41 | 0.41 | 0.89 |
| Stall | |||
| Torque (mN·m) | 10.1 | 8.9 | 14.8 |
| Current (A) | 1.1 | 0.3 | 0.6 |

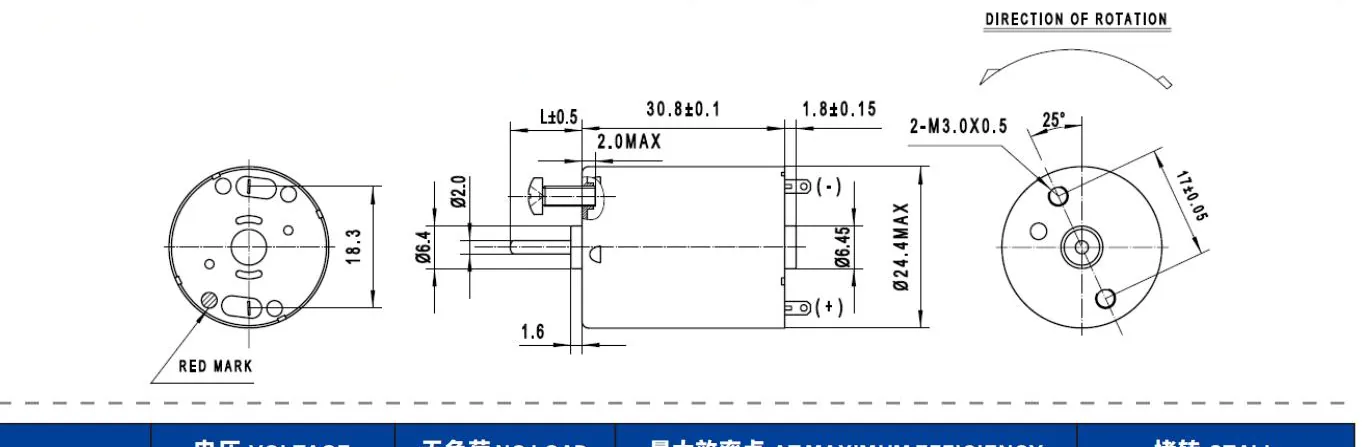

Dimensions

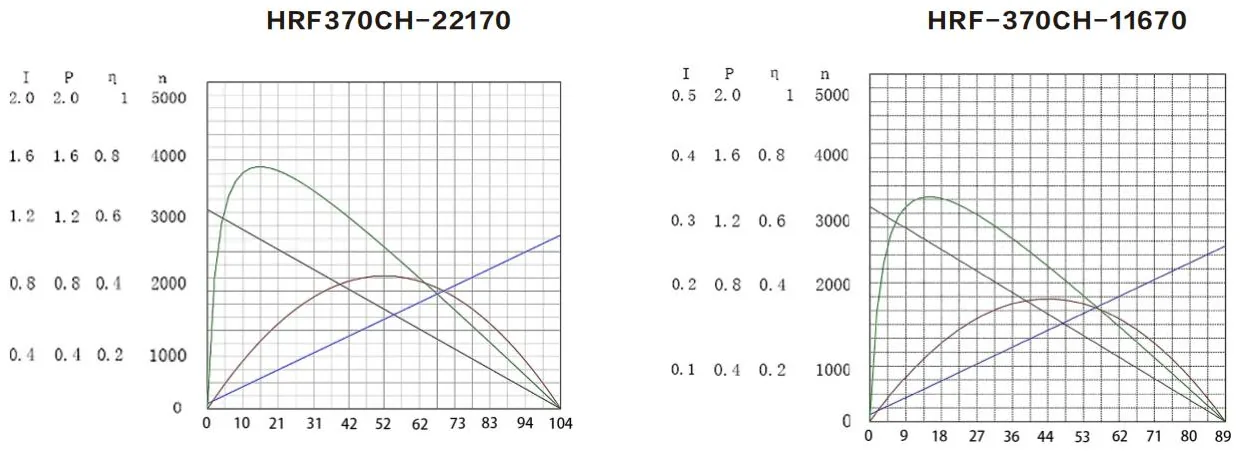

Performance curves
